LTL CT6001 Dual Door RF Shielded Test Enclosure for Multi-Device EMI/EMC Validation
High-capacity RF isolation enclosure with dual-access design for efficient simultaneous wireless testing
The LTL N16001C RF Shielded Enclosure from Liveon Technolabs is a compact, cube-structured EMI/EMC test enclosure engineered for precision testing of wireless modules and embedded systems. Its balanced internal geometry allows consistent RF performance, making it ideal for controlled testing environments.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 15.7" H × 17.1" W × 21.6" D
- Internal : 13.7" H × 14.5" W × 19.6" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES

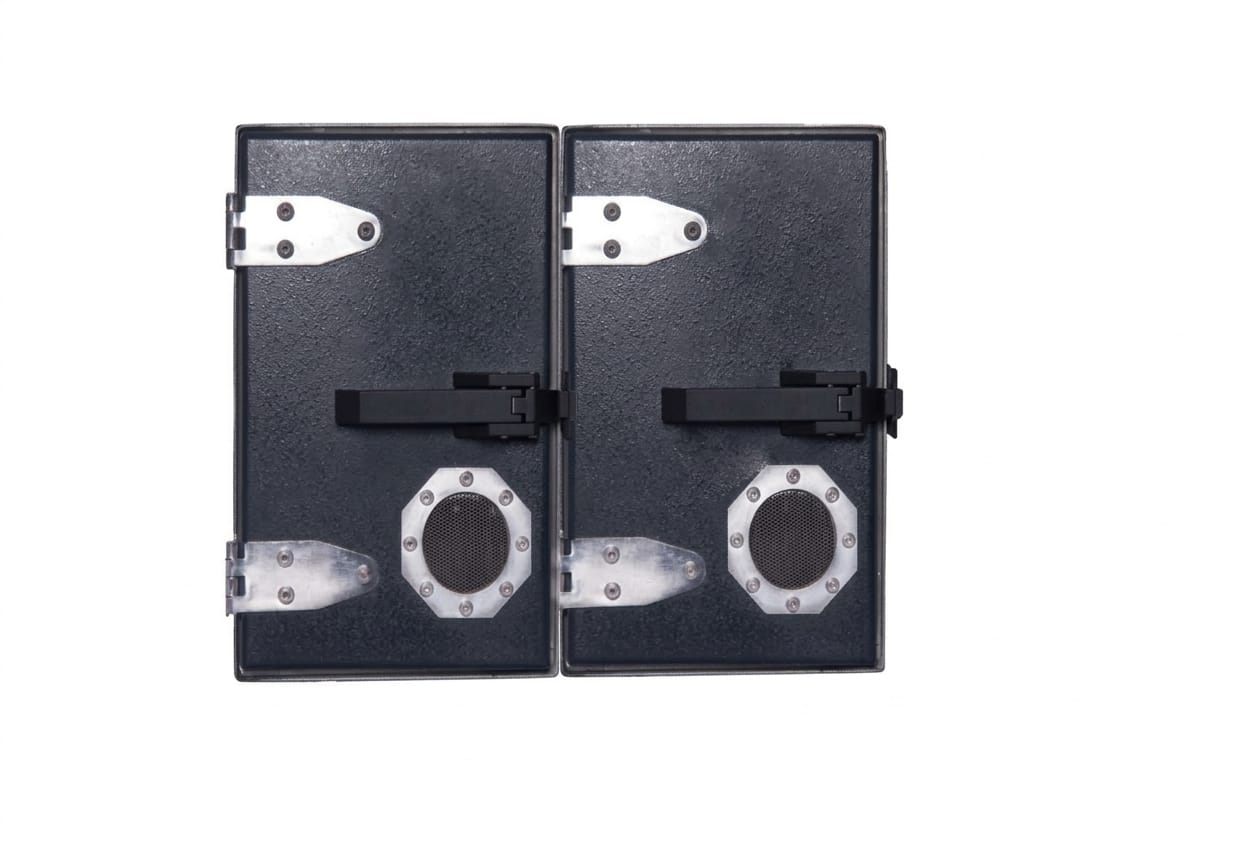

- Dual-door architecture for independent multi-device access
- High shielding effectiveness up to >90 dB RF isolation
- Spacious internal volume for complex DUT configurations
- Customizable I/O interface panel with multiple ports
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
