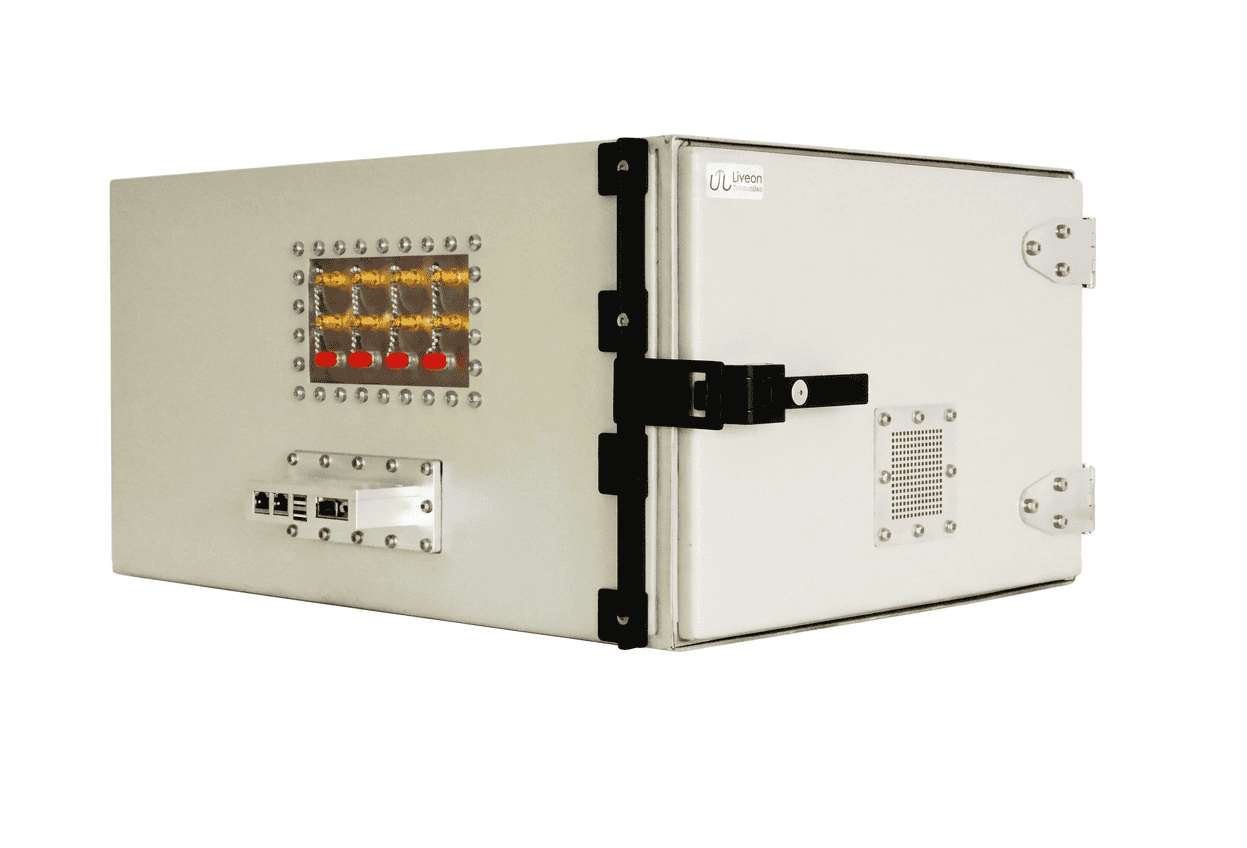

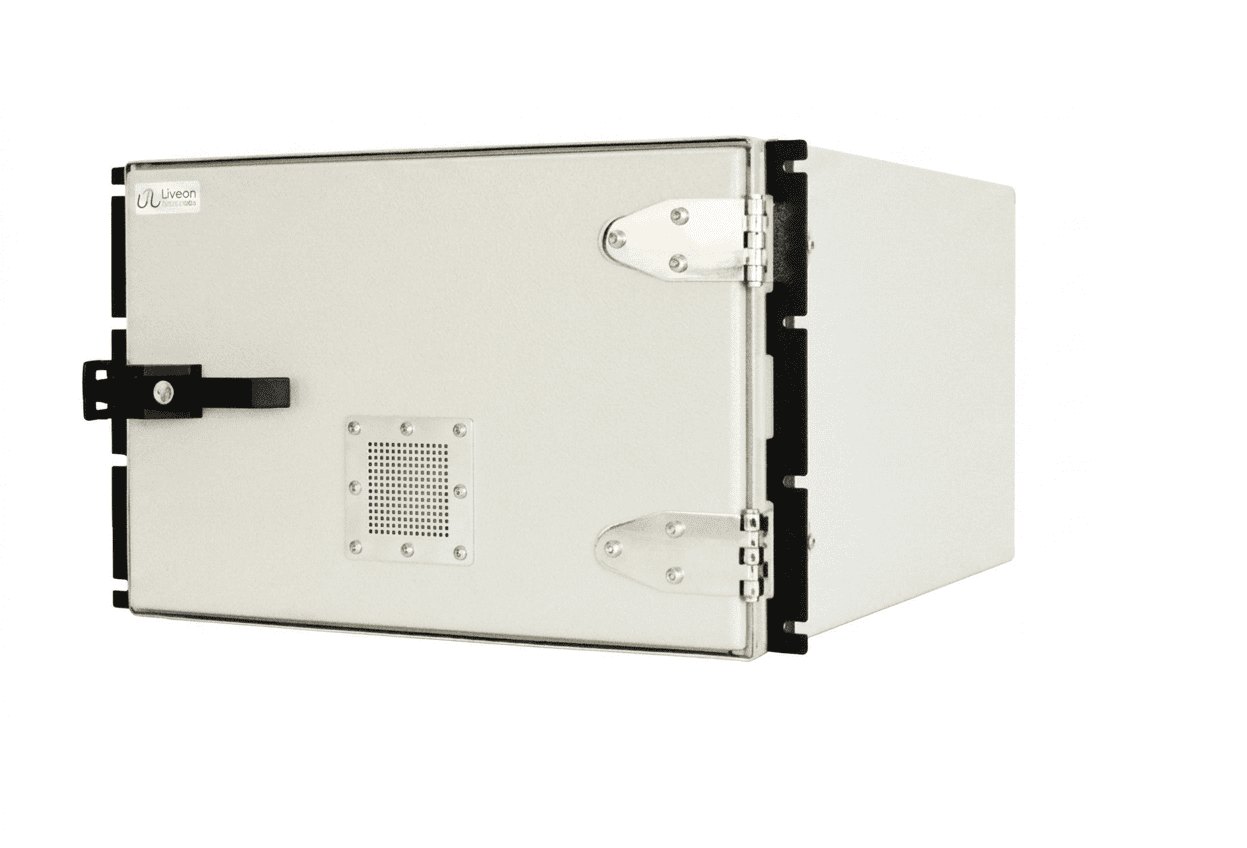

LTL B12001 RF Shielded Enclosure for Advanced Wireless & EMI Compliance Testing
Mid-size high-performance RF isolation box designed for multi-device testing and scalable EMI/EMC validation
The LTL B12001 RF Shielded Box from Liveon Technolabs is engineered for engineers and testing facilities requiring a reliable and scalable EMI/EMC testing enclosure. Designed to accommodate mid-sized devices, this RF test box provides a stable and interference-free environment essential for accurate wireless performance validation.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 11.5" H × 17" W × 22" D
- Internal : 9" H × 15" W × 20" D
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- RF absorber lining for reduced internal reflections
- Configurable modular I/O interface system
- EMI-shielded ventilation design
- Suitable for continuous testing operations
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
