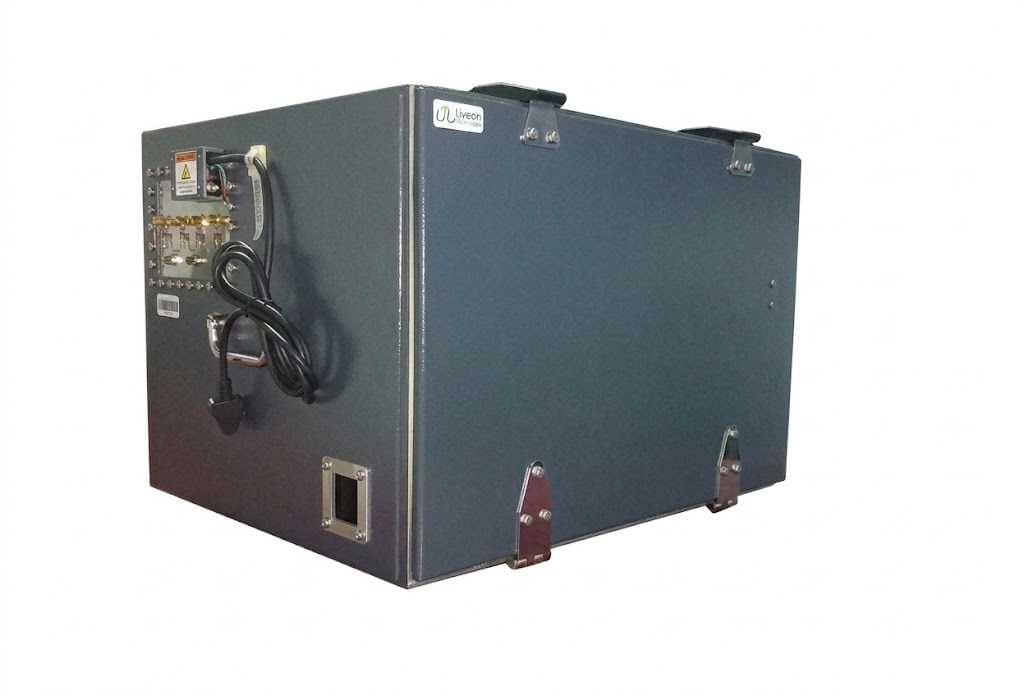

LTL G10001 RF Shielded Enclosure for Advanced EMI/EMC & Wireless Device Testing
Large-capacity RF isolation chamber engineered for telecom, wireless communication, OTA, and EMI/EMC validation environments
The LTL G10001 RF Shielded Enclosure from Liveon Technolabs is a high-capacity RF isolation chamber developed for advanced EMI/EMC testing, telecom validation, and wireless communication device evaluation. Designed to provide a stable and interference-free RF environment, the enclosure is ideal for engineering labs, production testing, and research applications requiring reliable RF shielding performance.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces

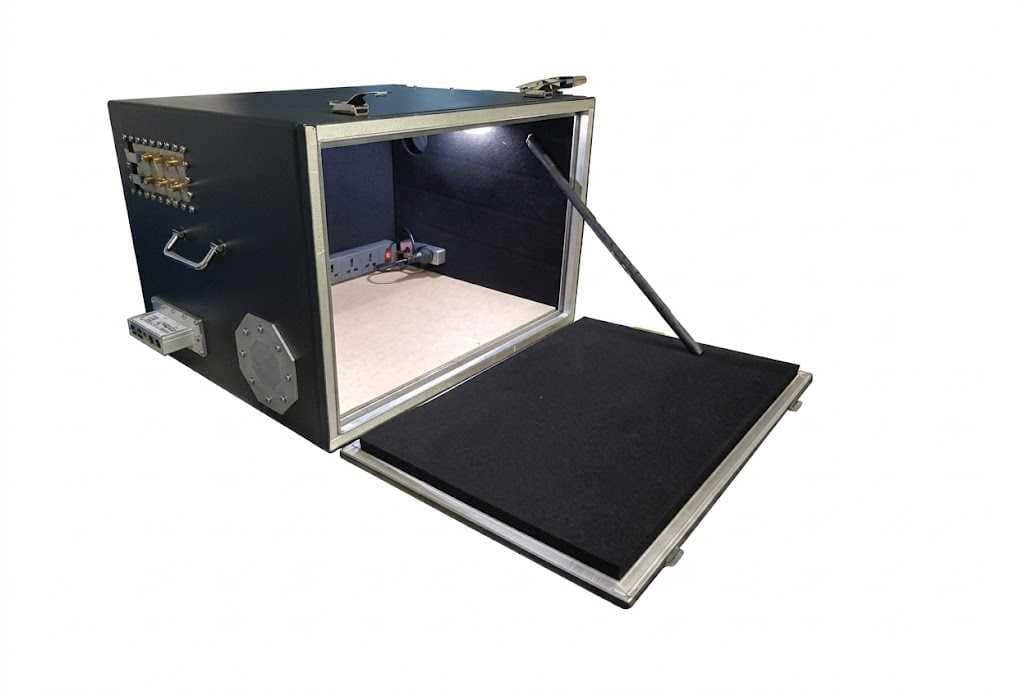

High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 12" H × 17" W × 13" D
- Internal : 10" H × 15" W × 11" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Advanced RF isolation and EMI suppression
- High shielding effectiveness up to >90 dB RF isolation
- RF absorber lining for stable signal conditions
- Customizable I/O interface panel with multiple ports
- EMI-filtered power entry system
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
