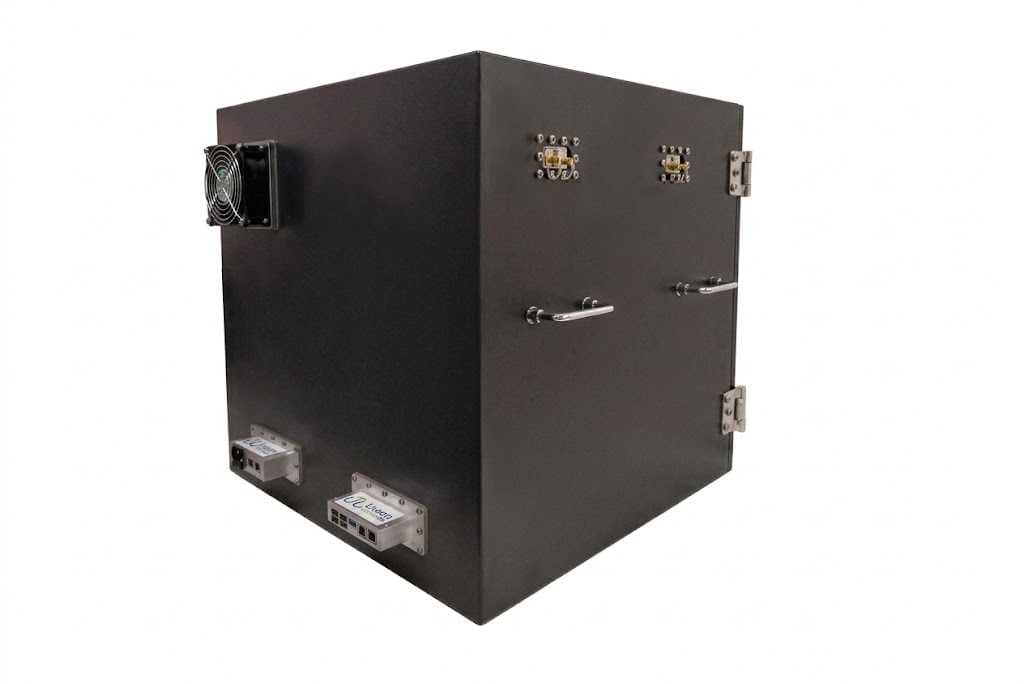

LTL T23001 RF Shielded Enclosure for Telecom, IoT & Embedded Device Testing
Compact industrial RF isolation enclosure designed for telecom validation, IoT testing, embedded electronics analysis, and wireless communication development
The LTL T23001 RF Shielded Enclosure is a compact and versatile RF isolation chamber developed for wireless communication testing, telecom device validation, IoT product development, and embedded electronics RF analysis.
The enclosure is ideal for telecom R&D laboratories, wireless engineering facilities, embedded electronics manufacturers, IoT device developers, and EMC testing environments requiring compact yet high-performance RF shielding solutions.
High Shielding Effectiveness
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 24"H × 24"W × 24"D
- Internal : 22"H × 22"W × 22"D
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- User-configurable I/O interface panels
- OTA wireless device testing support
- EMI-tight RF gasket sealing system
- Customizable I/O interface panel with multiple ports
- EMI-filtered power entry system
- High performance shielded ventilation

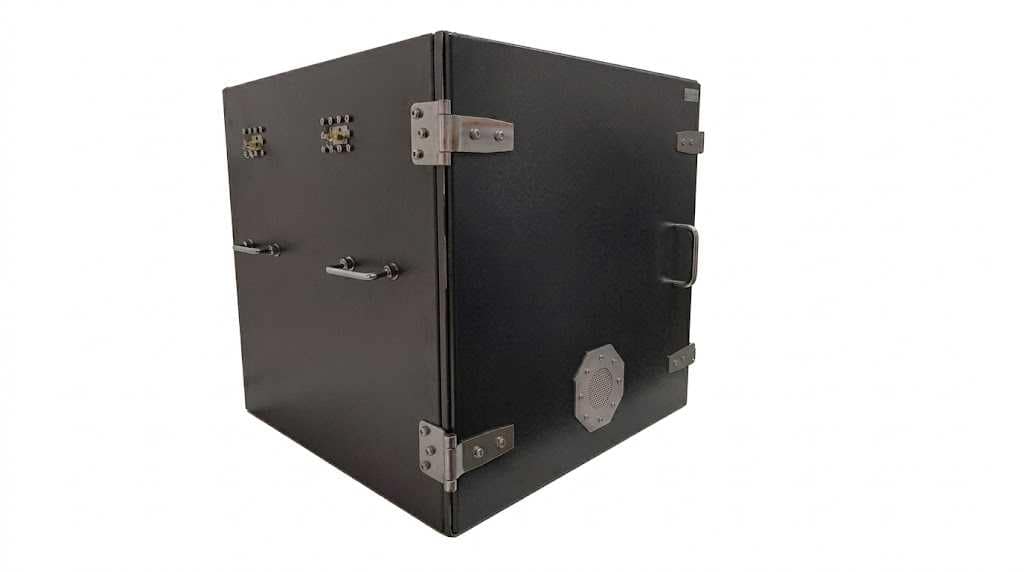

- Honeycomb shielded ventilation system
- RF absorber integration compatibility
