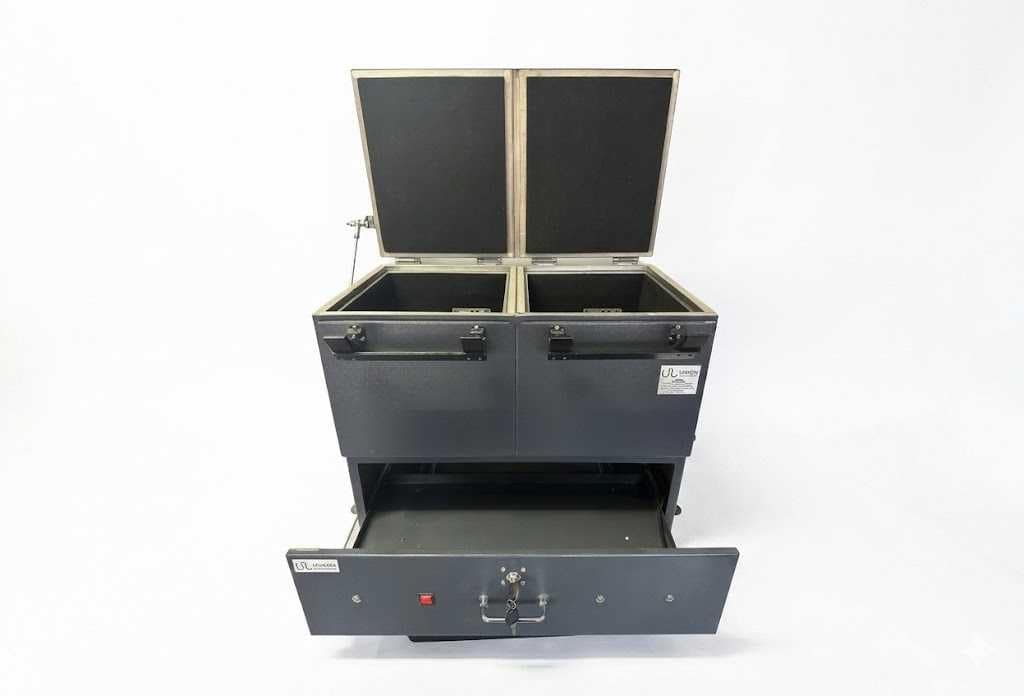

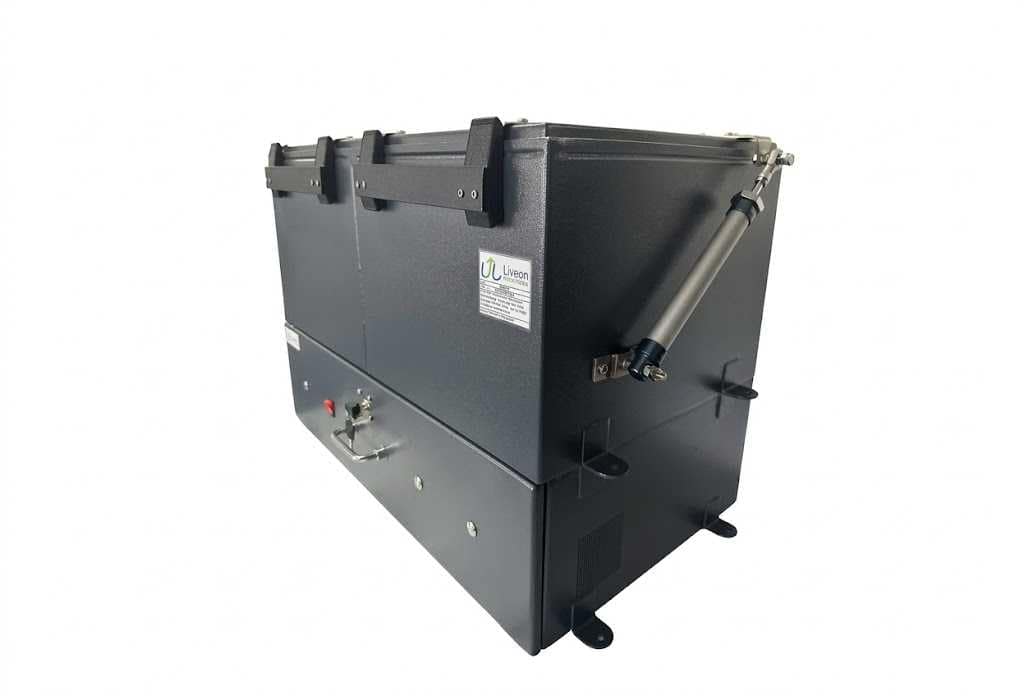

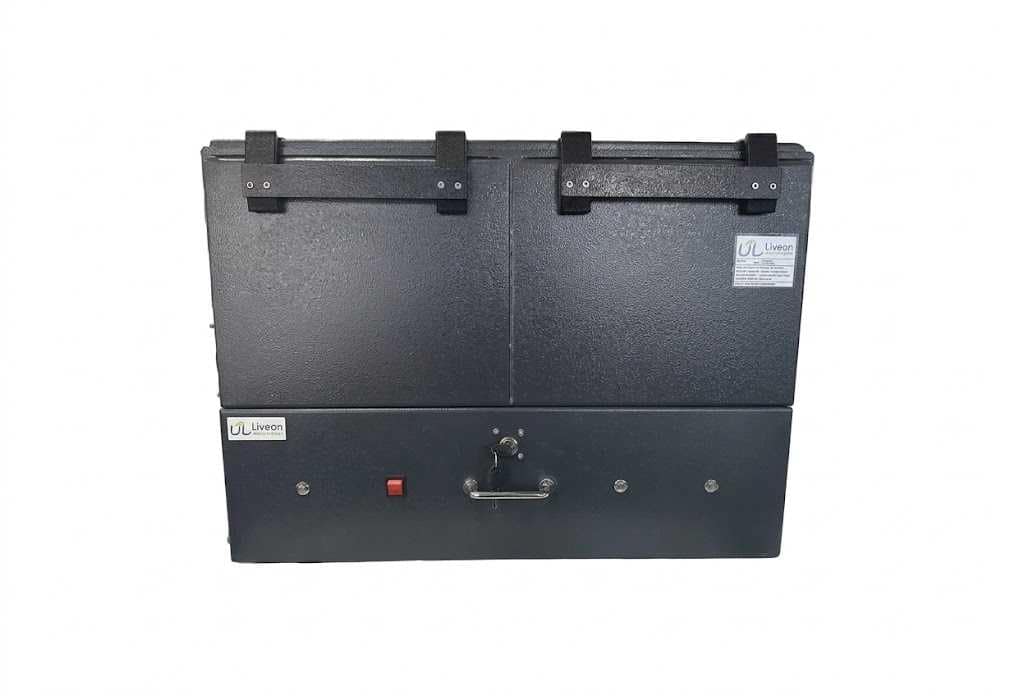

LTL FTB2001 RF Shielded Test Box for Wireless, IoT & EMC Validation
Compact RF shielded test box designed for wireless device development, IoT product validation, Bluetooth testing, EMC diagnostics, and telecom equipment evaluation
The LTL FTB2001 RF Shielded Test Box is a compact RF isolation solution engineered for wireless device testing, IoT product validation, Bluetooth and Wi-Fi evaluation, EMC diagnostics, and telecom equipment development.
Designed for laboratory, production, and R&D environments, the enclosure provides a controlled RF testing environment that minimizes external electromagnetic interference while ensuring reliable and repeatable test results.
High Shielding Effectiveness
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 10.67"H × 17"W × 12.9"D
- Internal : 8.3"W × 14.96"W × 10.78"D
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- High-performance RF shielding with minimal leakage
- Easy access hinged door with secure locking
- Suitable for continuous testing operations
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
