LTL U48001 Large RF Shielded Enclosure for Wireless Device Testing & EMC Applications
High-capacity RF isolation enclosure engineered for large wireless systems, telecom hardware validation, EMC diagnostics, and advanced RF performance testing
The LTL U48001 RF Shielded Enclosure is a large-capacity RF isolation chamber developed for advanced wireless communication testing, EMC validation, telecom equipment analysis, and industrial RF applications requiring spacious internal testing environments.
The enclosure is highly suitable for telecom laboratories, EMC facilities, wireless engineering centers, industrial electronics manufacturers, defense communication testing, and large-scale RF validation environments.
Excellent Shielding Effectiveness
EMI Filtered Data & Power Lines
High Performance RF Absorber Lining
Customize I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 85 dB @ 2.4 GHz
- 90 dB @ 6 GHz
Dimensions & Weights
- External : 48"H × 48"W × 48"D
- Internal : 46"H × 46"W × 46"D
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES

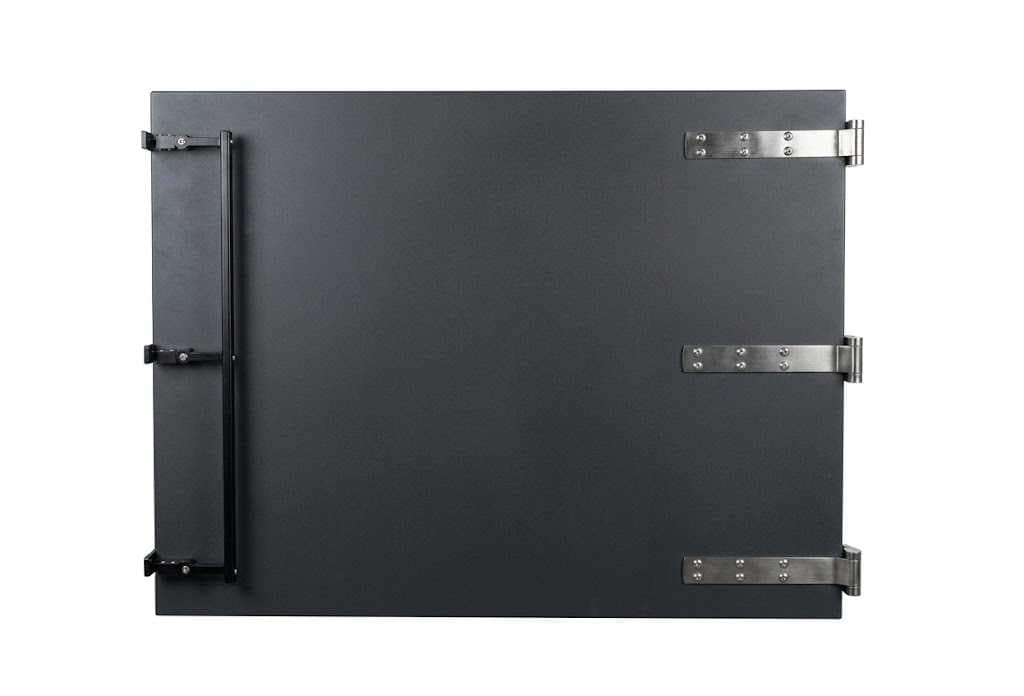

- Large-format RF shielded enclosure architecture
- High RF isolation performance

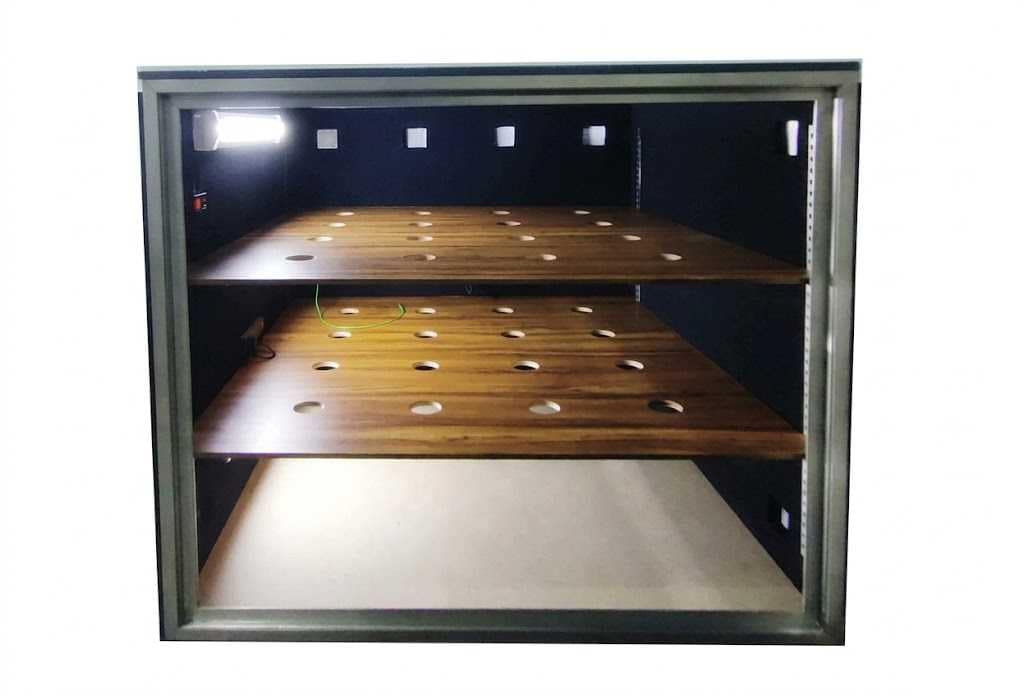

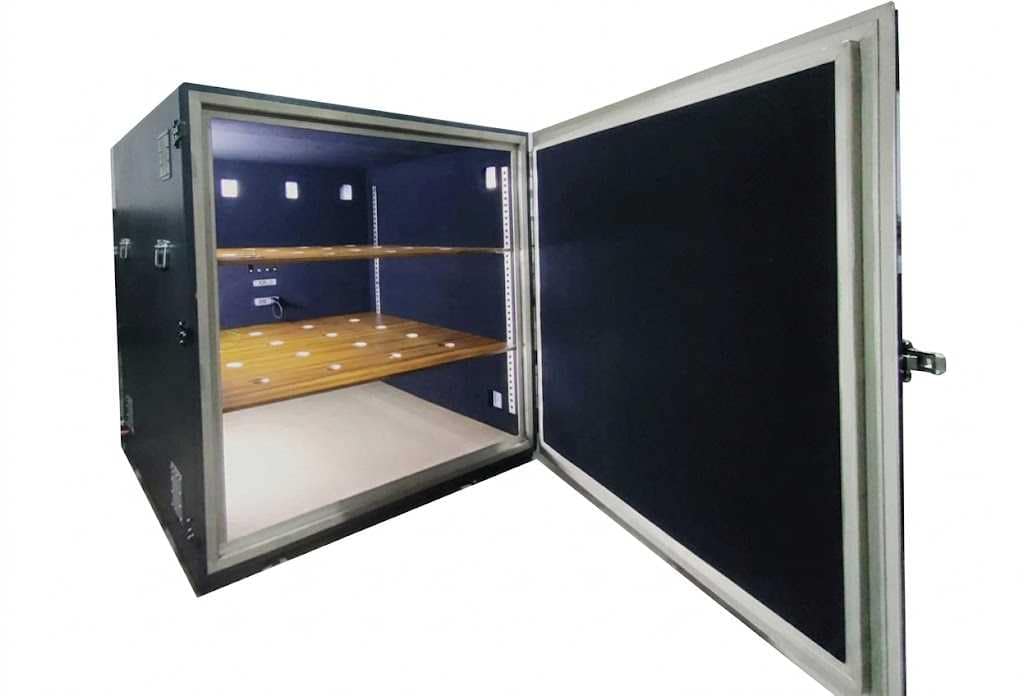

- Multi-level internal testing workspace

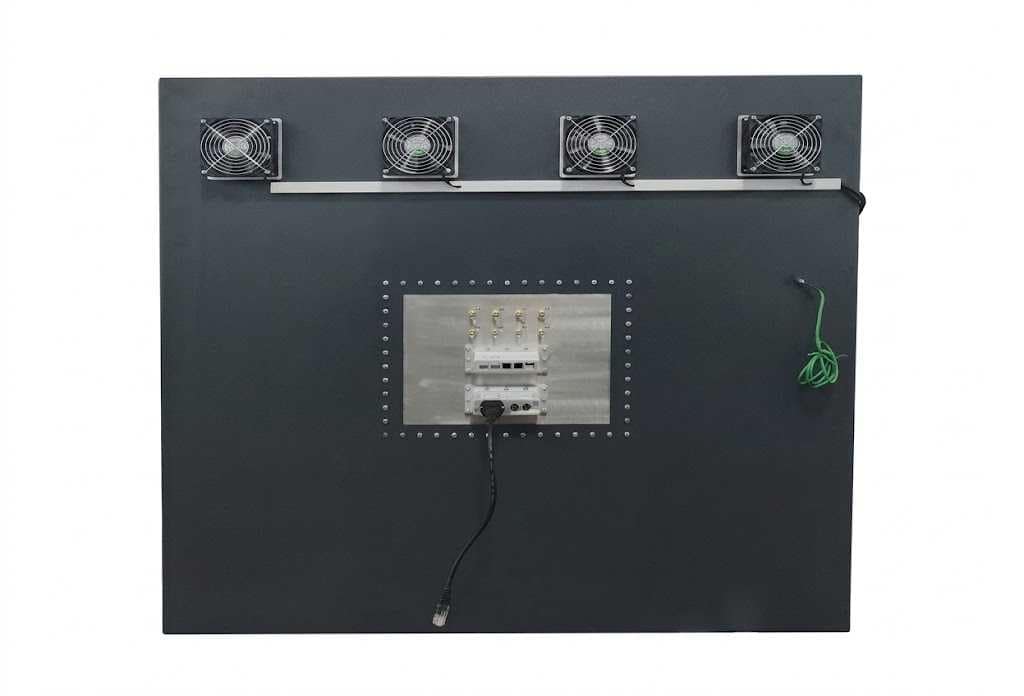

- Customizable I/O interface panel with multiple ports
- Designed for large wireless and telecom devices
- Precision RF-tight gasket sealing technology
- Honeycomb shielded ventilation system
- Customizable connector panel configurations
