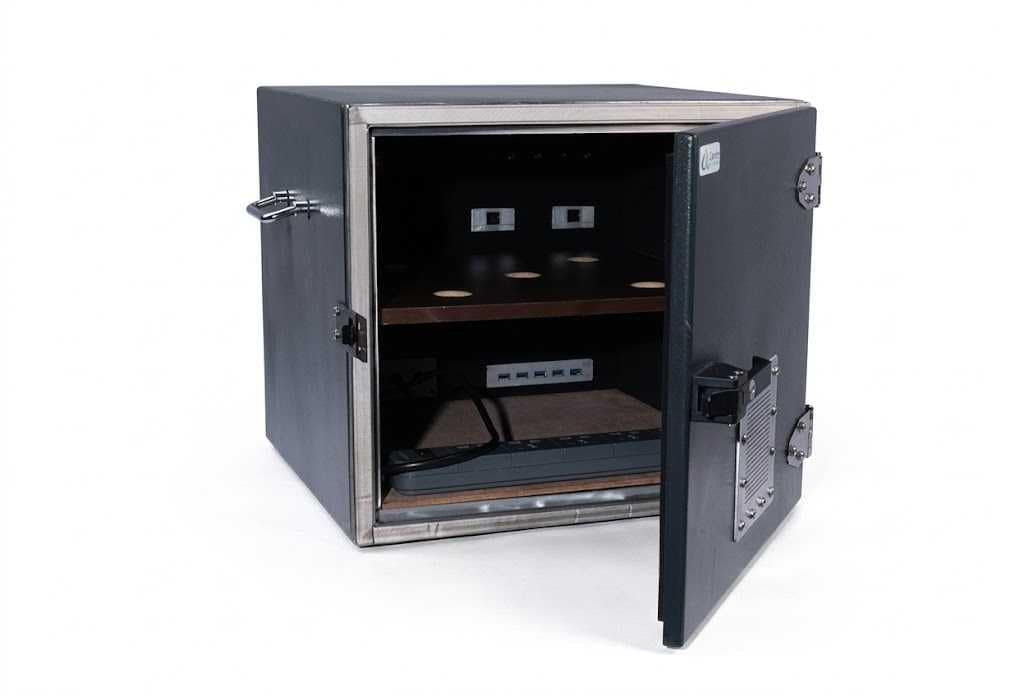

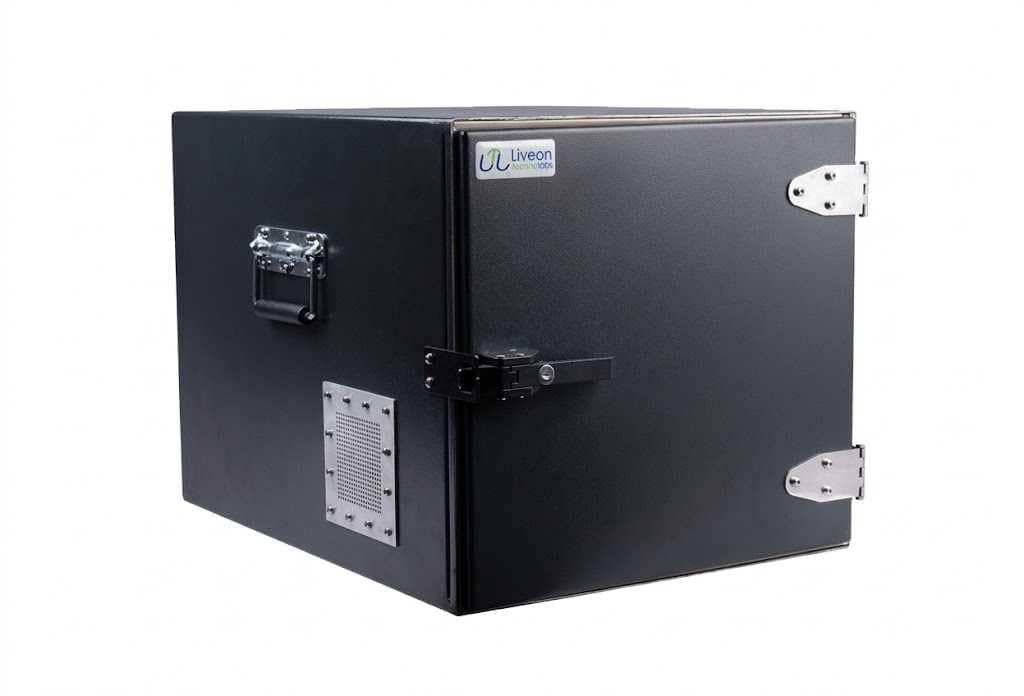

LTL A4001 RF Shielded Enclosure for EMI/EMC, Wireless & Telecom Device Testing
High-performance RF shielding enclosure designed for wireless communication, EMI isolation, and electronics validation
The LTL K14001 RF Shielded Enclosure from Liveon Technolabs is a robust EMI/EMC testing enclosure specifically engineered for demanding industrial and laboratory environments. Built using high-grade stainless steel, this RF shielded box offers exceptional durability, corrosion resistance, and long-term shielding stability for precision wireless testing applications.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 16" H × 17" W × 22" D
- Internal : 13.5" H × 15" W × 20" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Stainless steel enclosure for enhanced durability
- High shielding effectiveness up to >90 dB RF isolation
- RF absorber lining for stable signal conditions

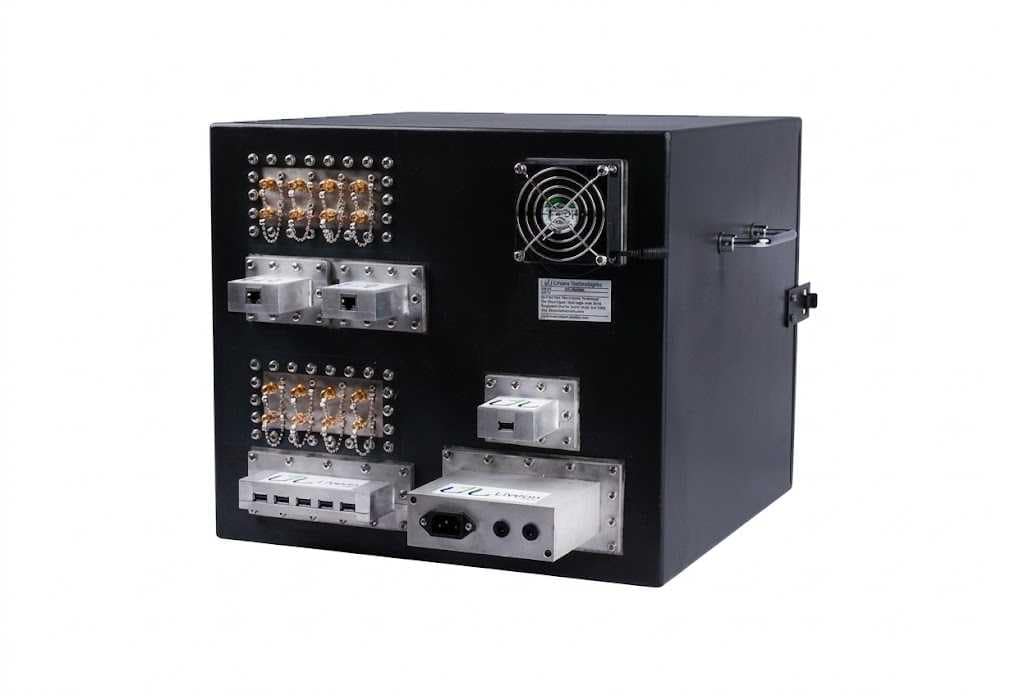

- Customizable I/O interface panel with multiple ports
- EMI-filtered power entry system
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
