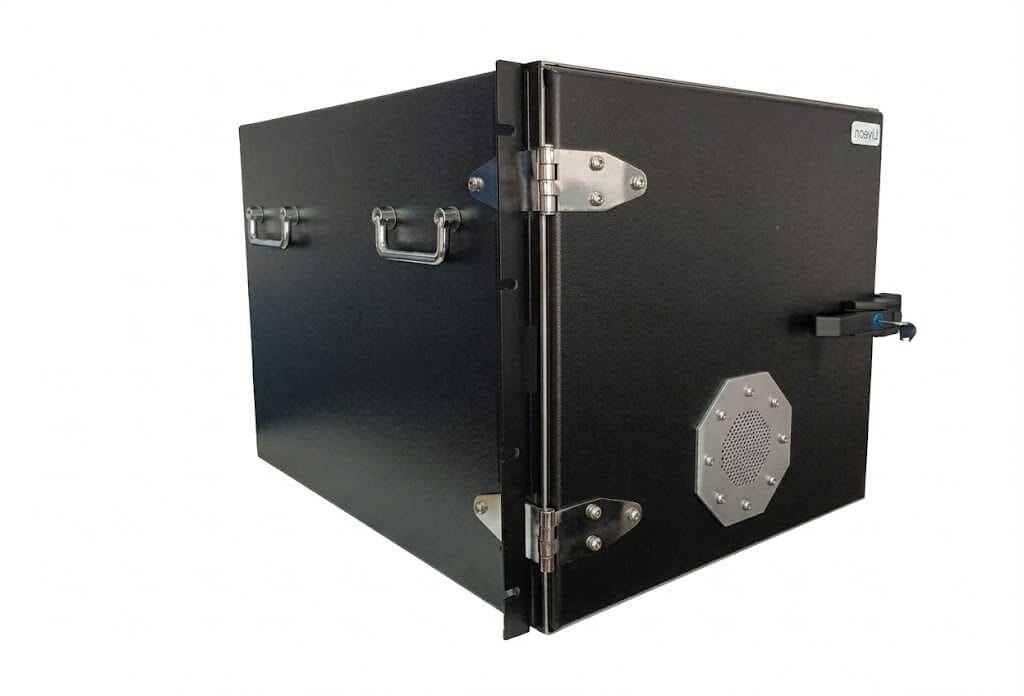

LTL A6001 RF Shielded Enclosure for EMI/EMC & Wireless Device Testing
Industrial-grade RF isolation enclosure engineered for telecom, wireless communication, and EMI/EMC validation applications
The LTL A6001 RF Shielded Enclosure by Liveon Technolabs is a high-performance RF test chamber developed for advanced wireless device testing, EMI/EMC validation, and telecom product evaluation. Designed for engineers, OEMs, and R&D laboratories, the enclosure creates a stable RF-isolated environment for precise and repeatable testing.
The LTL A6001 is ideal for Wi-Fi, Bluetooth, LTE, 5G, RFID, IoT, OTA, and EMI/EMC pre-compliance testing applications.
High Shielding Effectiveness
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 19" H × 17" W × 22" D
- Internal : 17.5" H × 15" W × 20" D
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Stainless steel enclosure for enhanced durability
- RF-tight industrial locking mechanism
- Customizable I/O interface panel with multiple ports
- EMI-filtered AC/DC power integration
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
