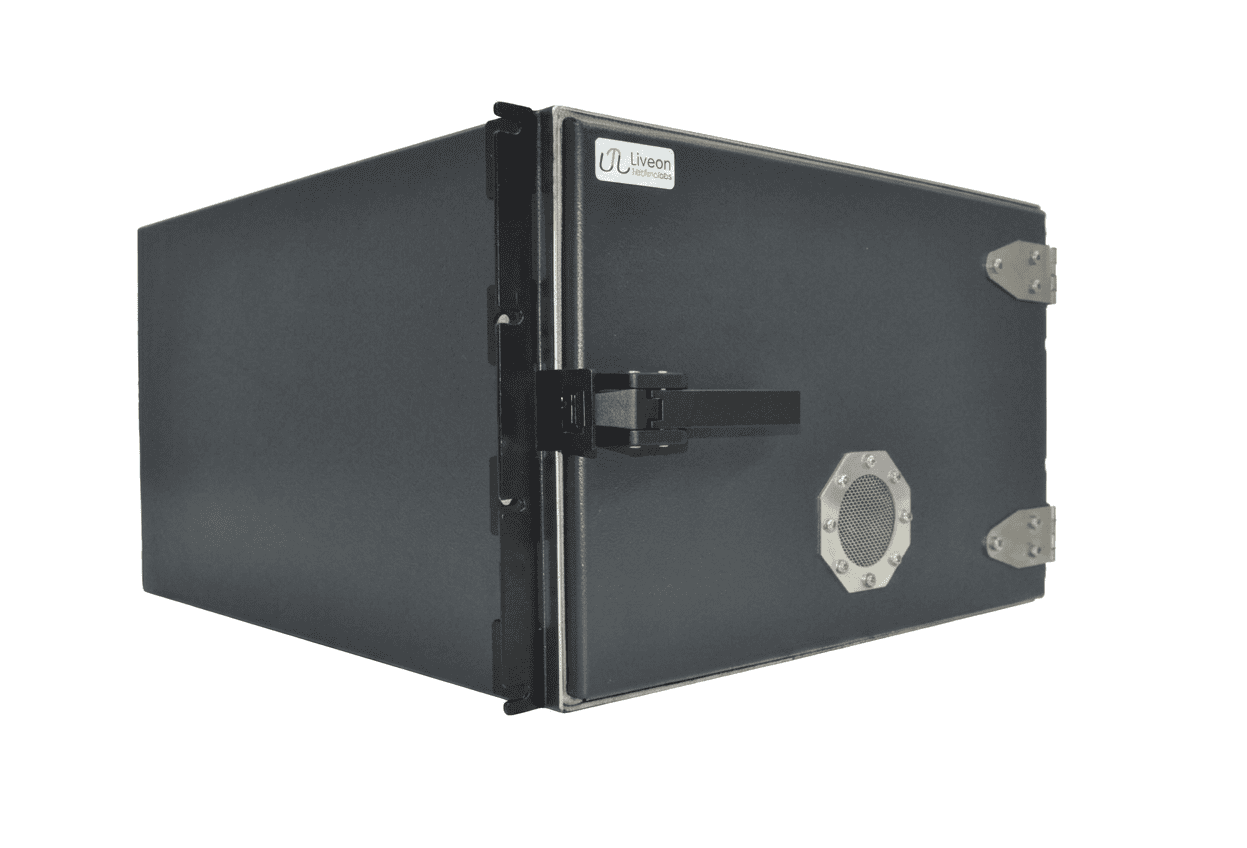

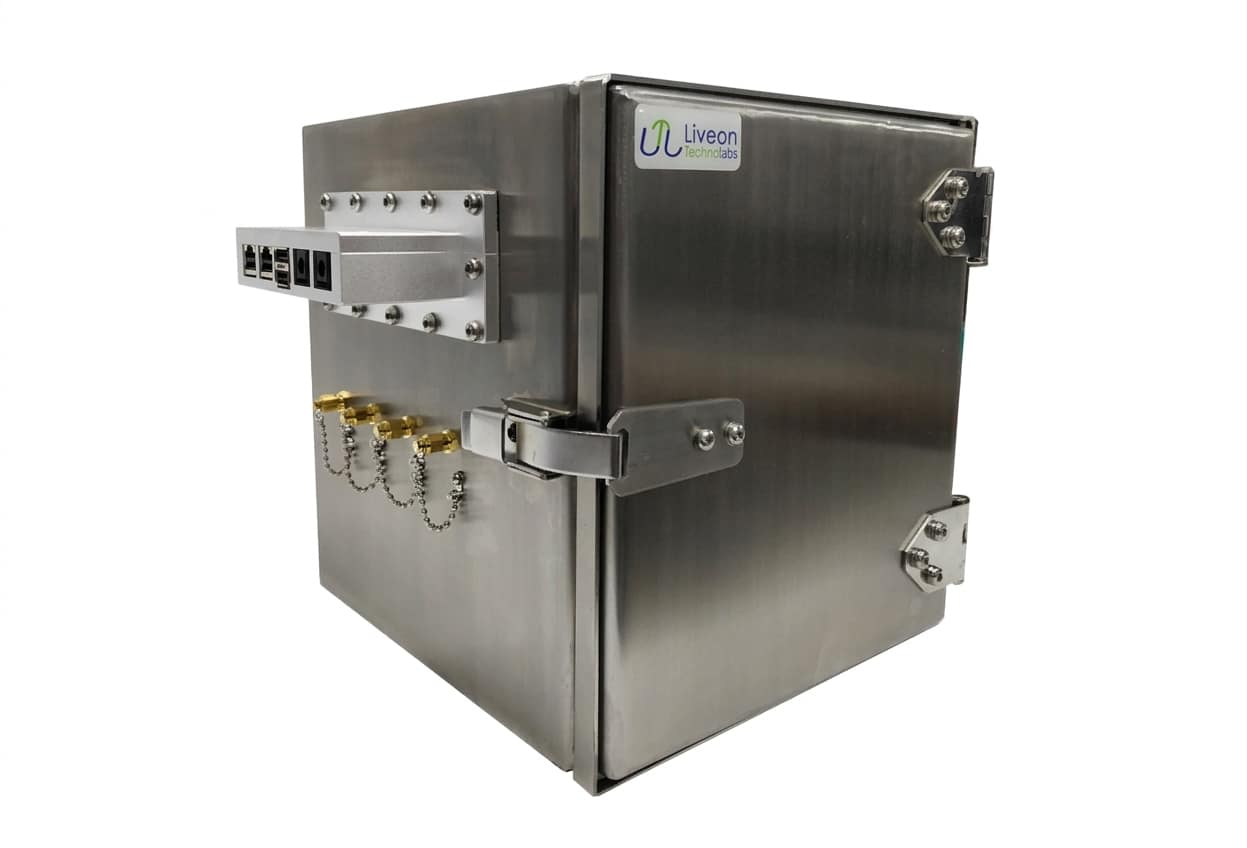

LTL B5001 RF Shielded Test Box for EMI/EMC & Wireless Device Validation
Compact high-isolation RF enclosure engineered for accurate wireless and EMI/EMC testing environments
The LTL B5001 RF Shielded Box by Liveon Technolabs is a precision-engineered EMI/EMC test enclosure designed to create a controlled RF environment for accurate wireless testing. Built for engineers and testing labs, this compact RF test box ensures high shielding effectiveness, minimizing external interference during critical measurements.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining

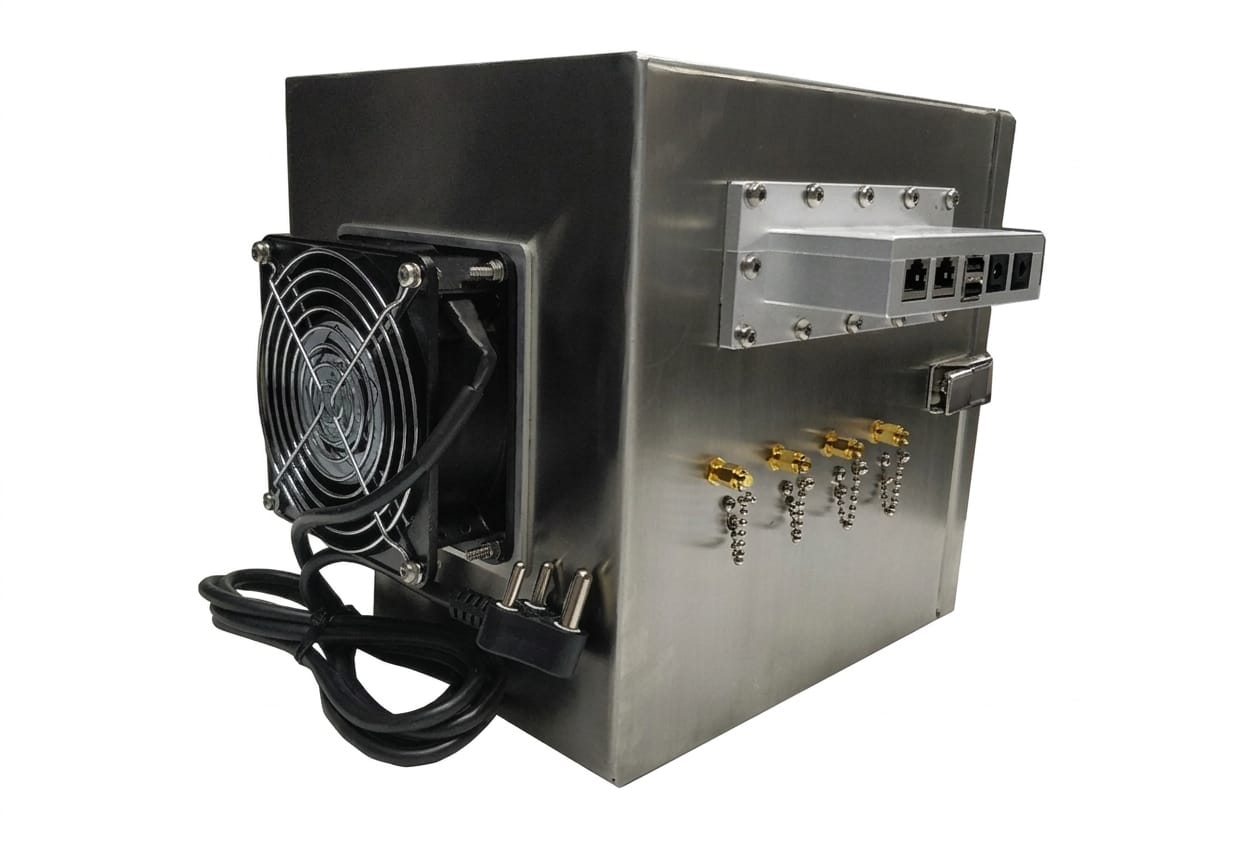

Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 11.5" H × 17" W × 22" D
- Internal : 9" H × 15" W × 20" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- RF absorber lining for internal signal stability

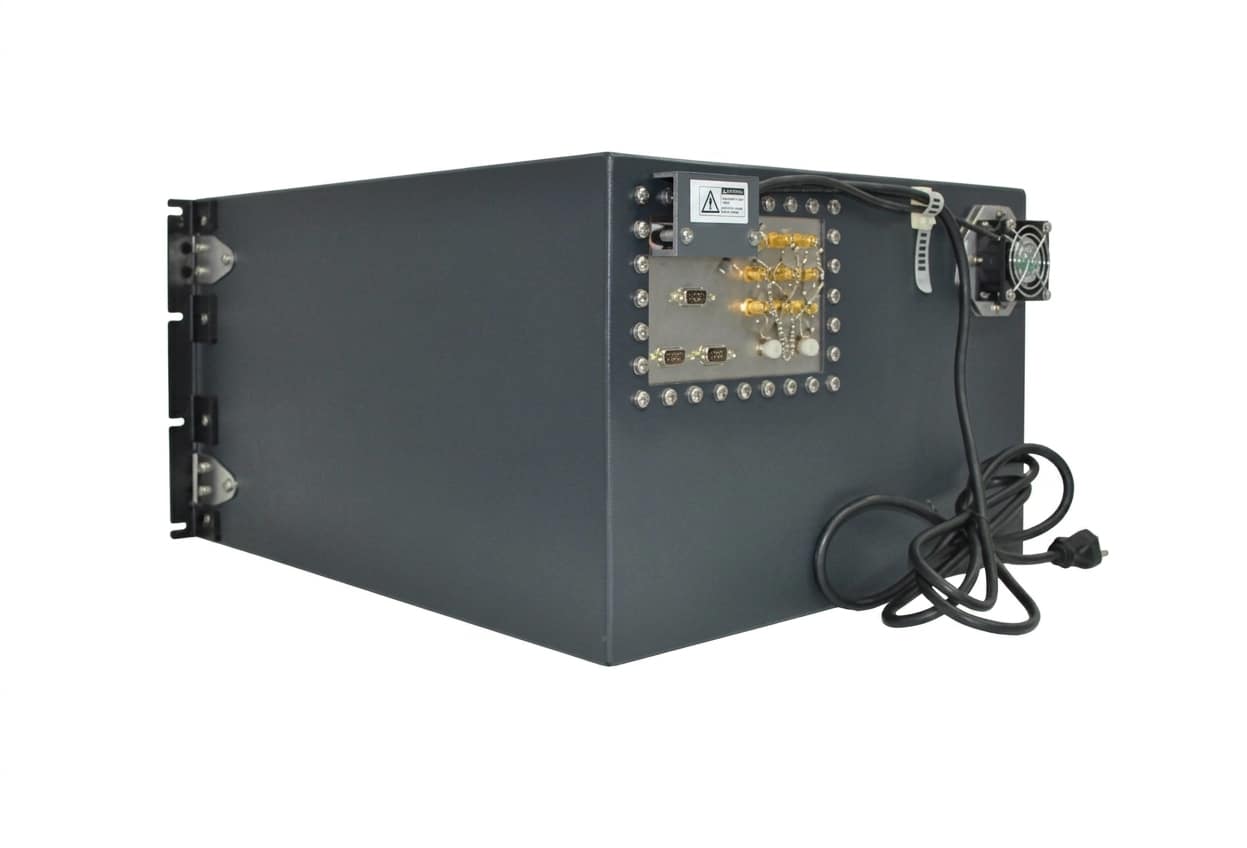

- Modular connector interface panel
- Easy access hinged door with secure locking
- Suitable for continuous testing operations
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
