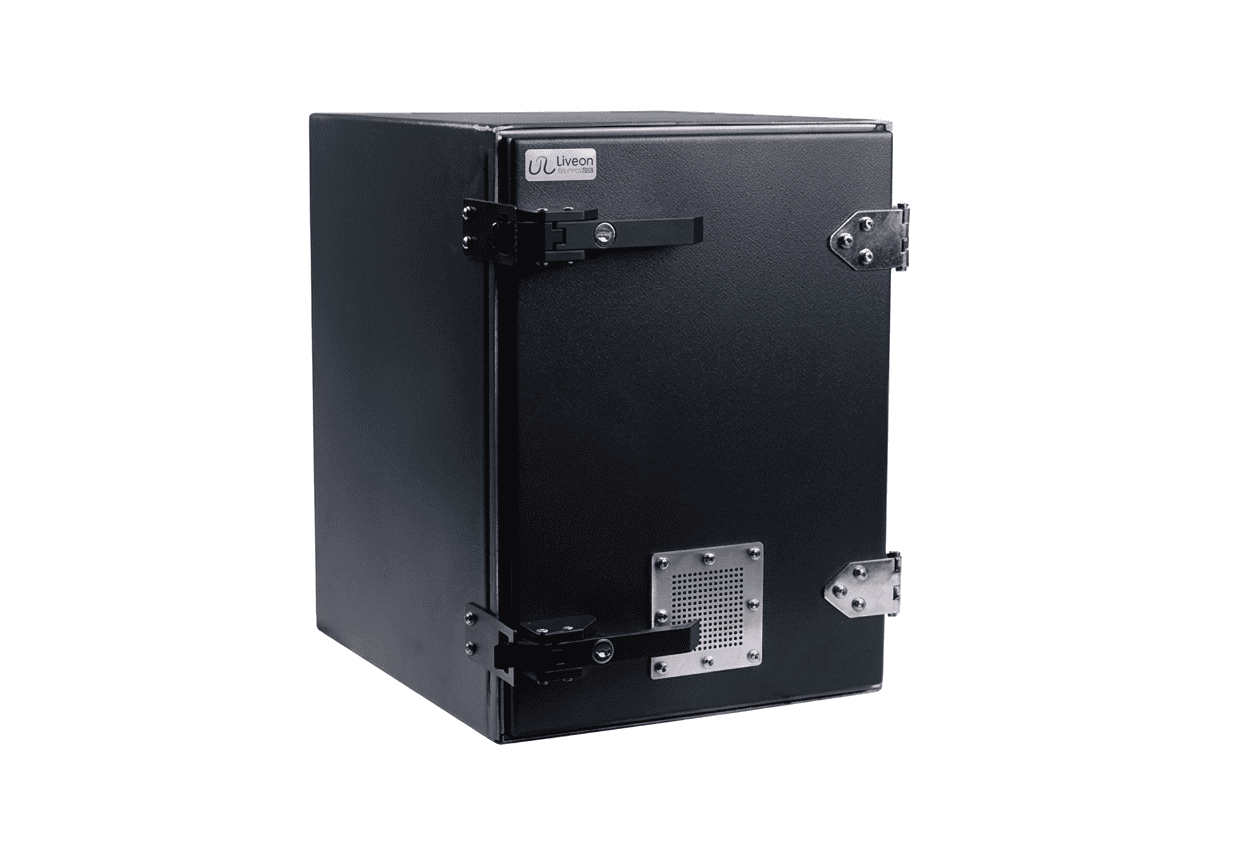

LTL D7001 Compact RF Shielded Test Enclosure for EMI/EMC & Wireless Device Isolation
Space-efficient high-isolation RF test box engineered for precise small-device testing and lab environments
The LTL D7001 RF Shielded Test Enclosure from Liveon Technolabs is a compact and efficient EMI/EMC testing solution designed for engineers working with small wireless devices and modules. Its optimized size makes it ideal for laboratories with space constraints while still delivering high shielding performance.

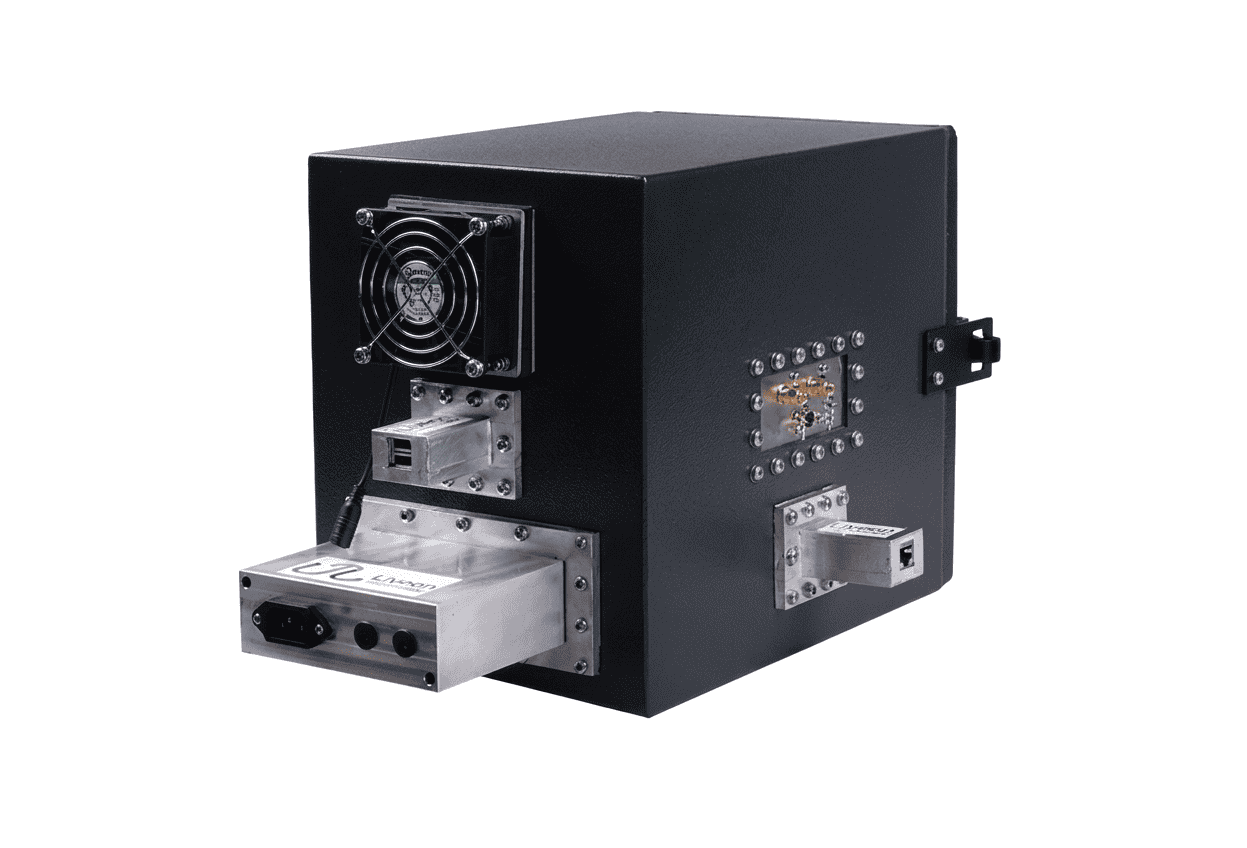

The LTL D7001 supports a variety of configurable I/O options, including RF connectors, filtered power inputs, and data communication interfaces, allowing seamless integration with testing equipment. The honeycomb ventilation system maintains airflow without compromising shielding integrity.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining

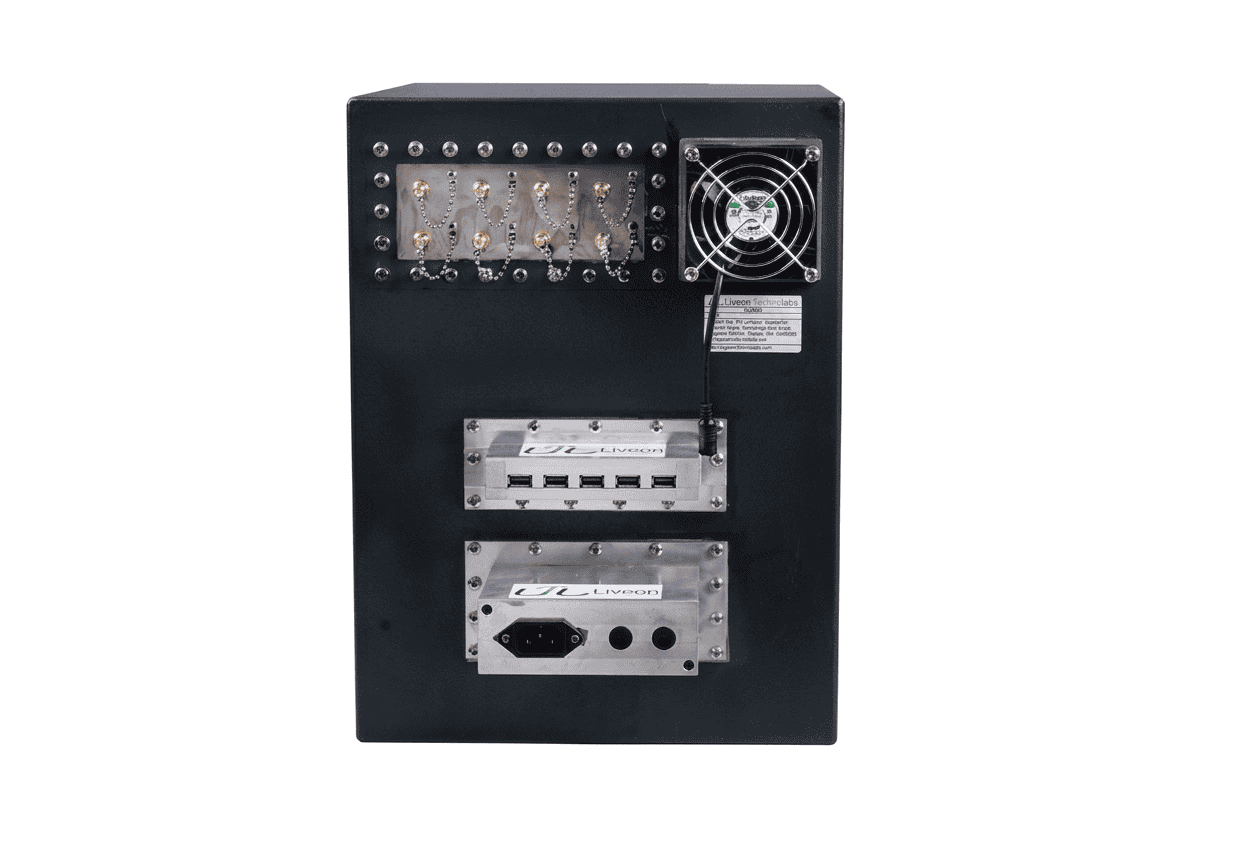

Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 12" H × 8" W × 18" D
- Internal : 10" H × 6" W × 16" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Compact design for limited lab space applications

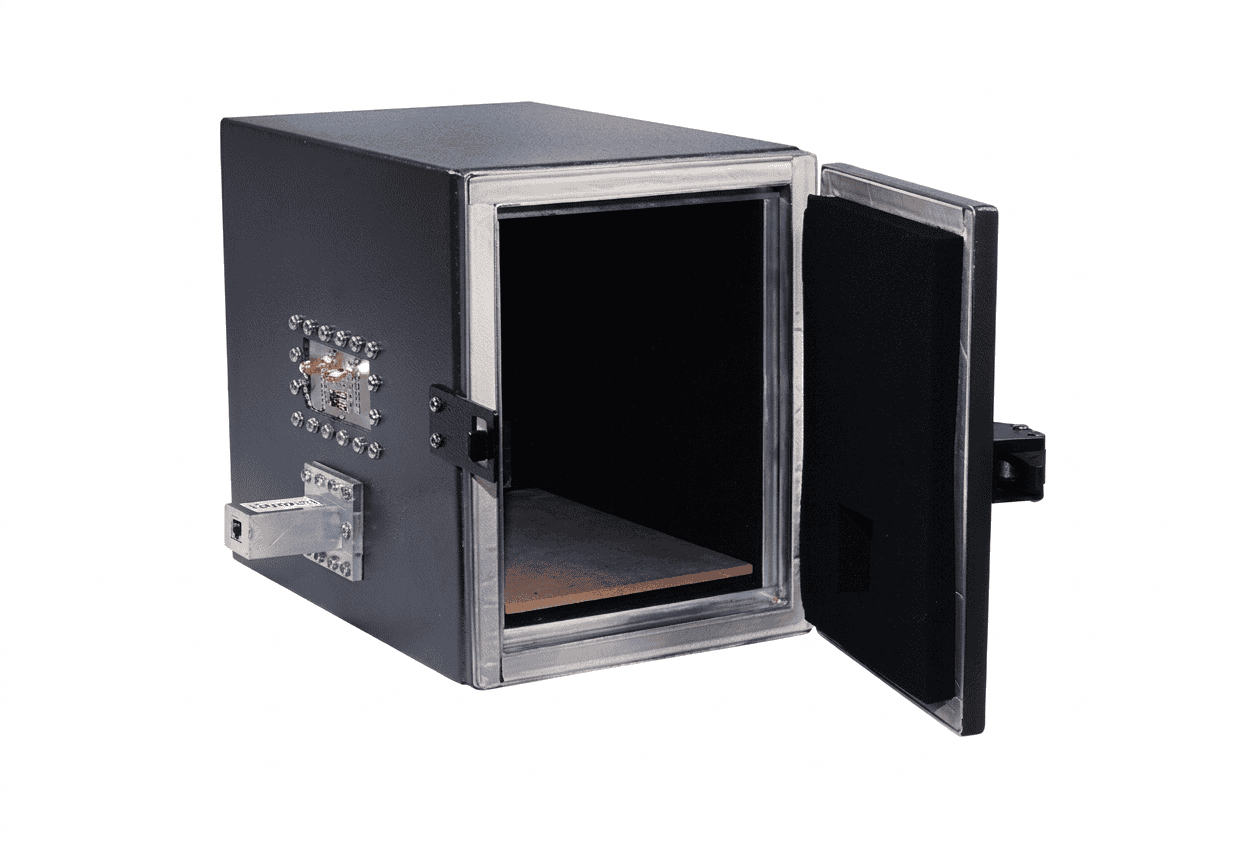

- RF absorber lining for improved signal absorption
- Secure latch mechanism ensuring RF-tight closure
- Customizable I/O interface panel configurations
- High-strength aluminum enclosure construction
- EMI-filtered power input for noise reduction
- RF-shielded airflow ventilation system
- Durable hinges for frequent usage
