LTL H12001 RF Shielded Enclosure for EMI EMC, Wireless & Telecom Testing
High-performance RF isolation enclosure engineered for advanced wireless device testing, EMI/EMC validation, and telecom RF applications

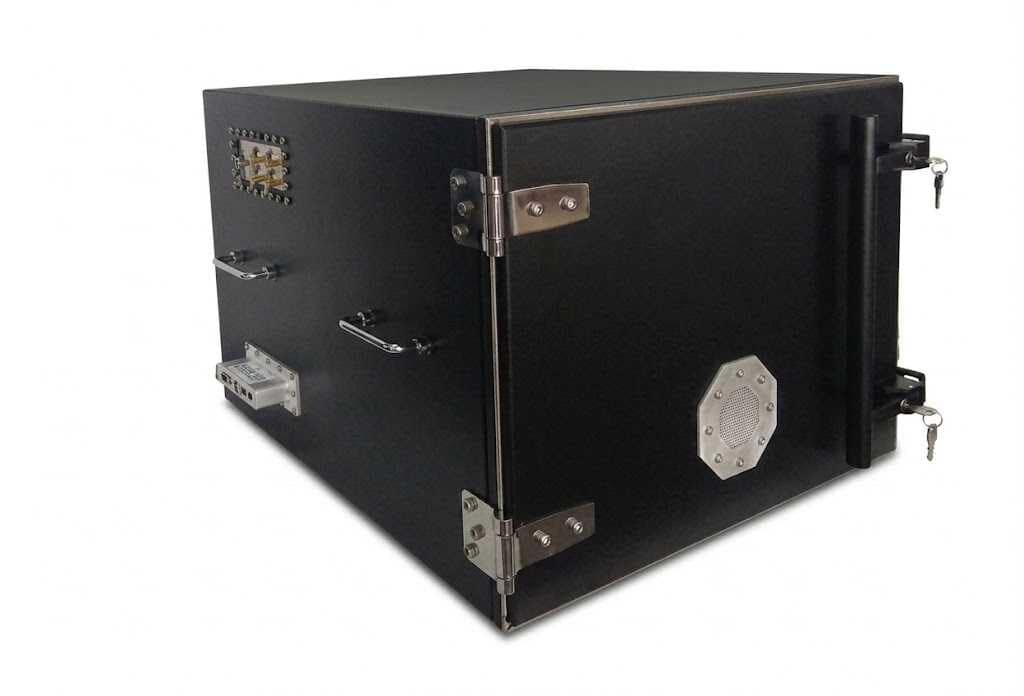

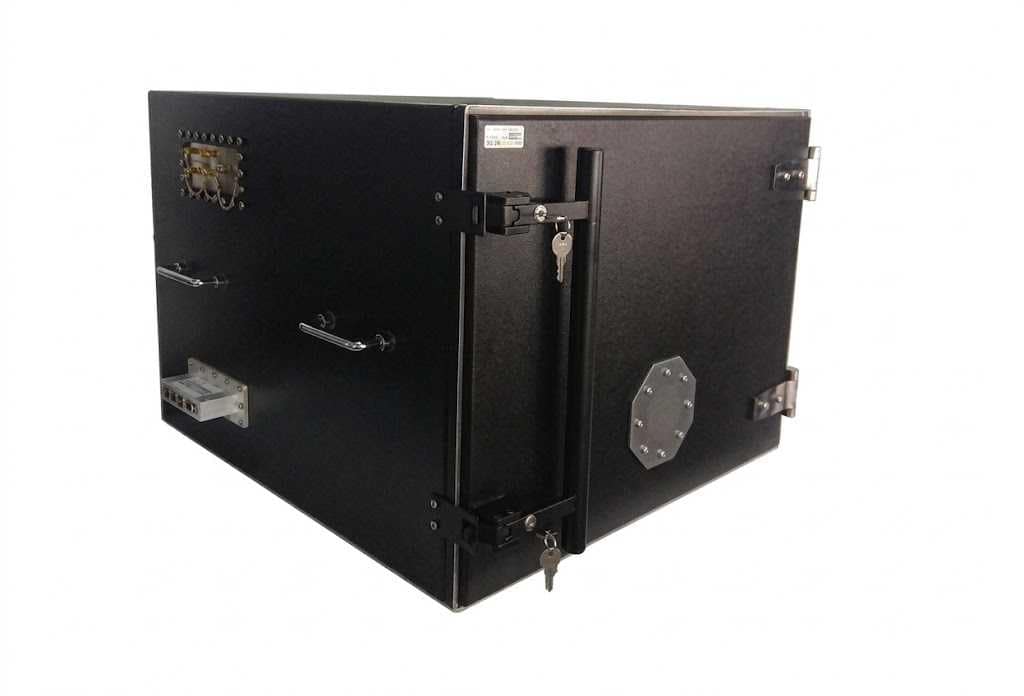

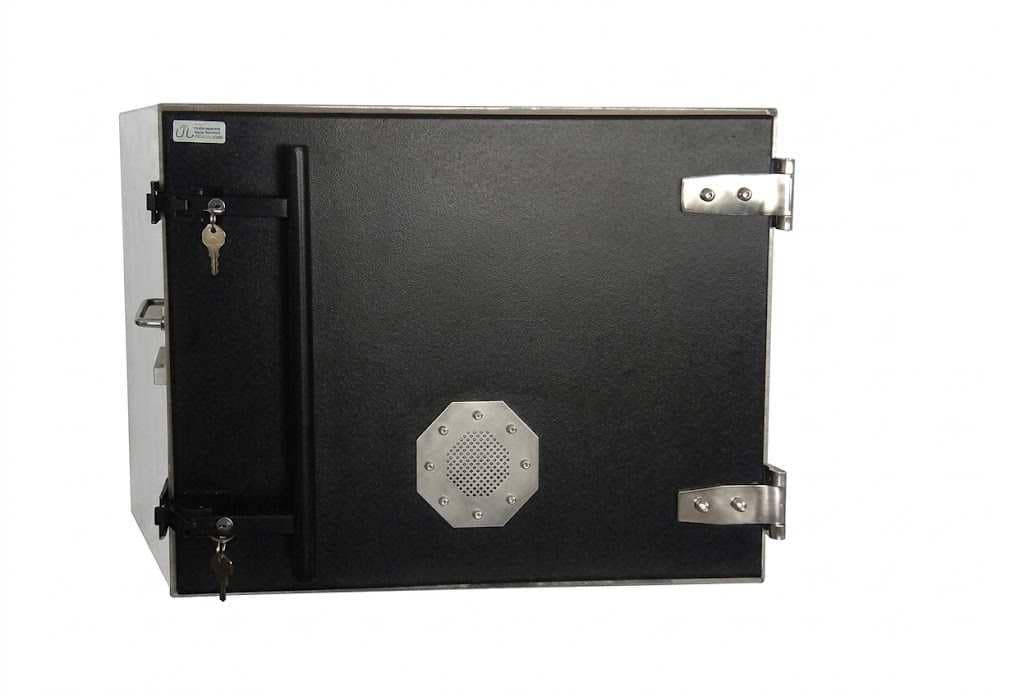

The LTL H12001 RF Shielded Enclosure by Liveon Technolabs is a professional-grade RF shielding chamber developed for EMI/EMC testing, telecom validation, wireless communication analysis, and RF isolation applications.
An integrated honeycomb RF ventilation architecture with AC/DC axial fan compatibility maintains thermal stability while preserving shielding integrity during continuous operation.
The LTL H12001 is ideal for telecom R&D, wireless device testing, EMI/EMC compliance testing, RF product development, defense electronics testing, and industrial wireless validation environments.
High Shielding Effectiveness
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 19" H × 25" W × 25" D
- Internal : 17" H × 23" W × 23" D
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Ultra-high RF shielding performance
- High shielding effectiveness RF isolation
- Stainless steel welded enclosure construction
- Customizable I/O interface panel with multiple ports
- EMI-filtered power entry system
- High performance shielded ventilation
- Honeycomb shielded ventilation system
- Customizable connector panel configurations
