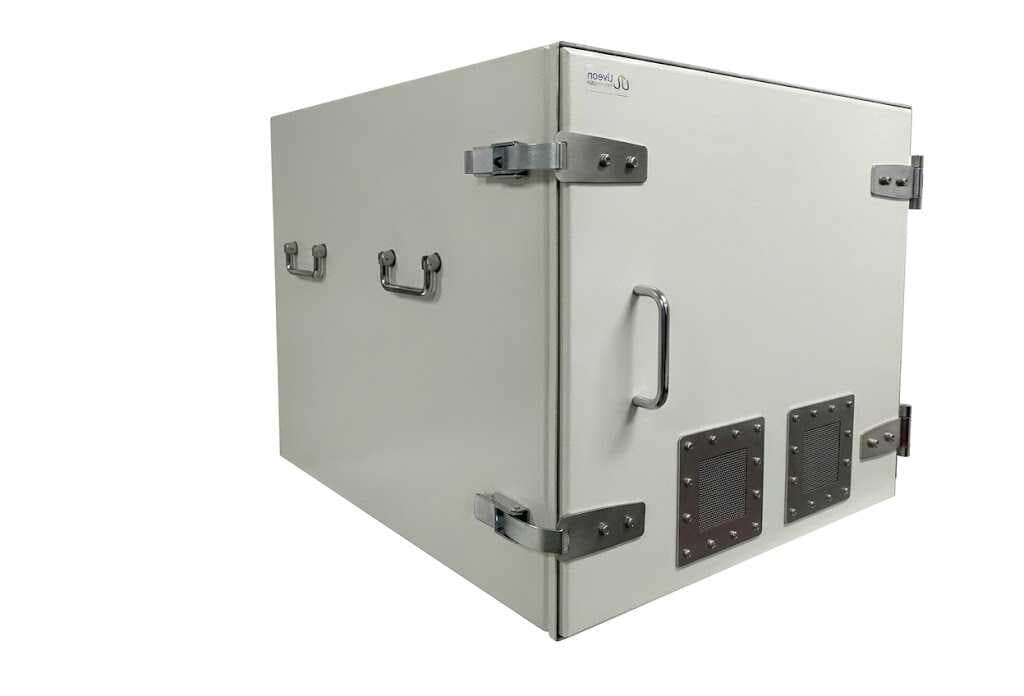

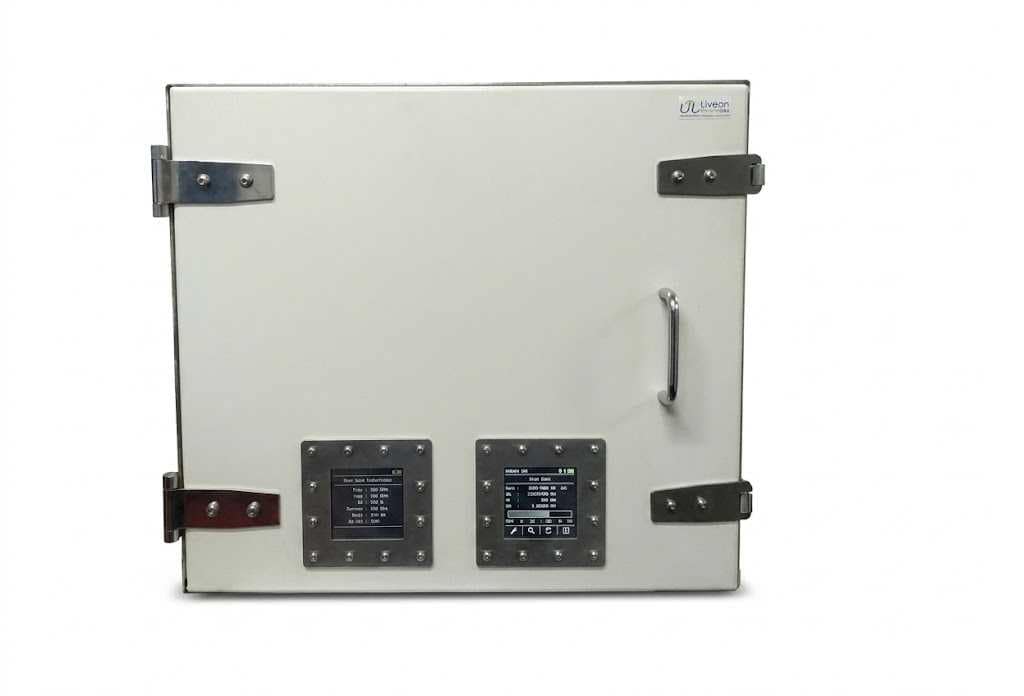

LTL M20001 RF Shielded Enclosure for EMI EMC & Wireless Device Testing
Advanced RF isolation enclosure for telecom, EMI/EMC, LTE, Wi-Fi, Bluetooth, and OTA wireless testing applications
The LTL H11001 RF Shielded Enclosure from Liveon Technolabs is a premium high-isolation RF shielding chamber developed for advanced EMI/EMC testing, telecom product validation, wireless communication analysis, and defense-grade RF isolation applications.

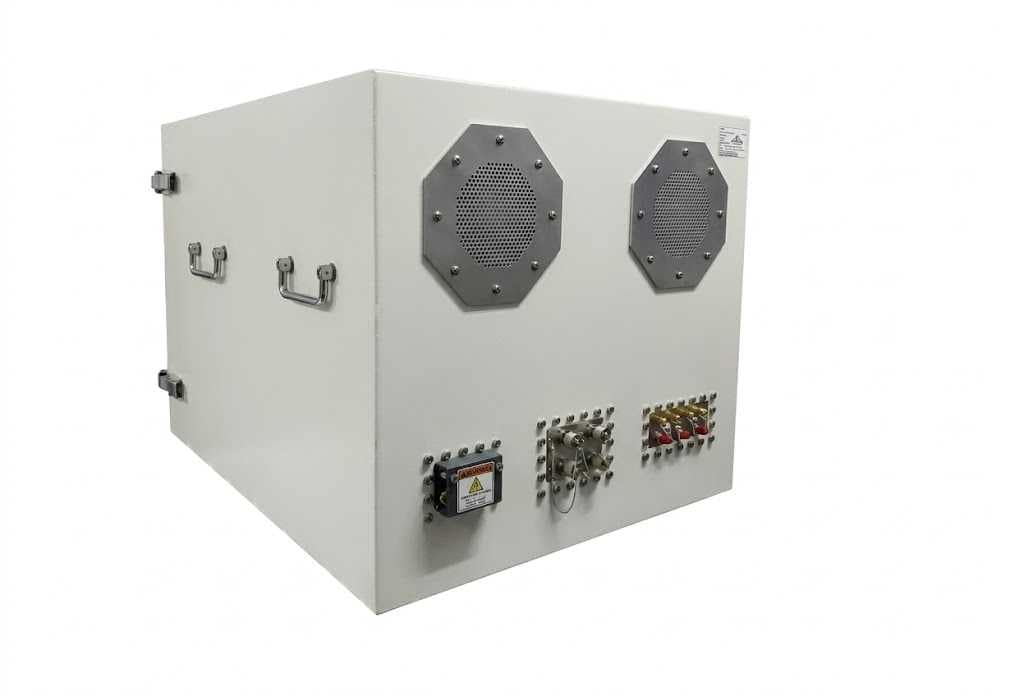

The enclosure incorporates a honeycomb RF ventilation architecture with AC/DC axial fan cooling support to maintain thermal stability without compromising shielding integrity.
Ideal for telecom R&D, EMI/EMC compliance testing, OTA testing, wireless coexistence analysis, military electronics validation, and industrial RF environments.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 16" H × 17" W × 22" D
- Internal : 13.5" H × 15" W × 20" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Ultra-high RF shielding performance
- High shielding effectiveness up to >90 dB RF isolation
- Stainless steel welded enclosure construction
- Customizable I/O interface panel with multiple ports
- EMI-filtered power entry system
- High performance shielded ventilation
- Honeycomb shielded ventilation system
- Customizable connector panel configurations
