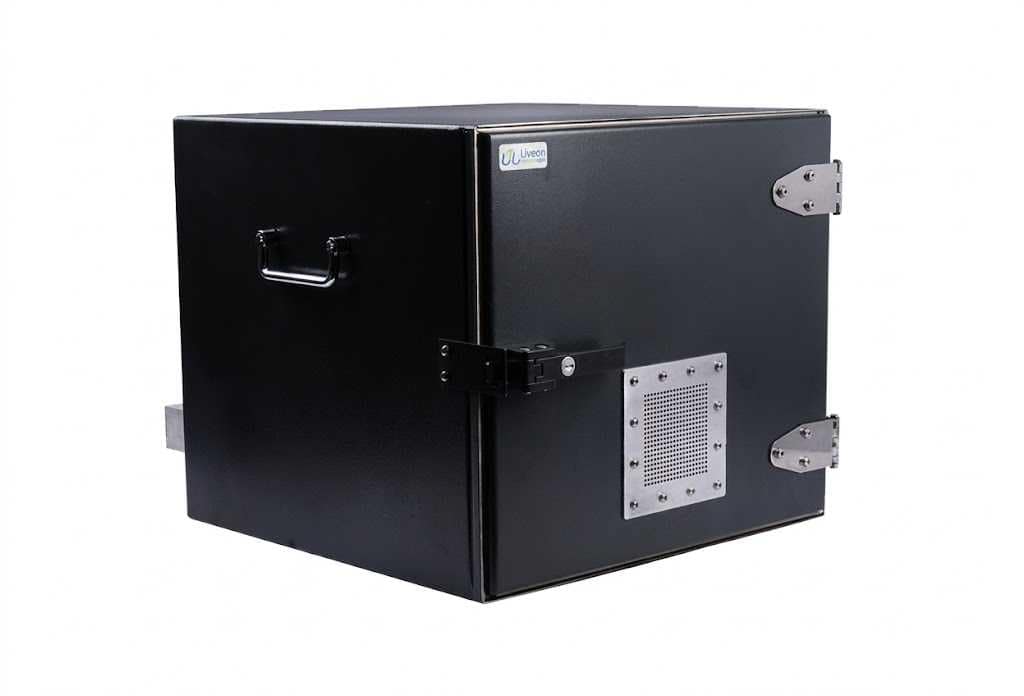

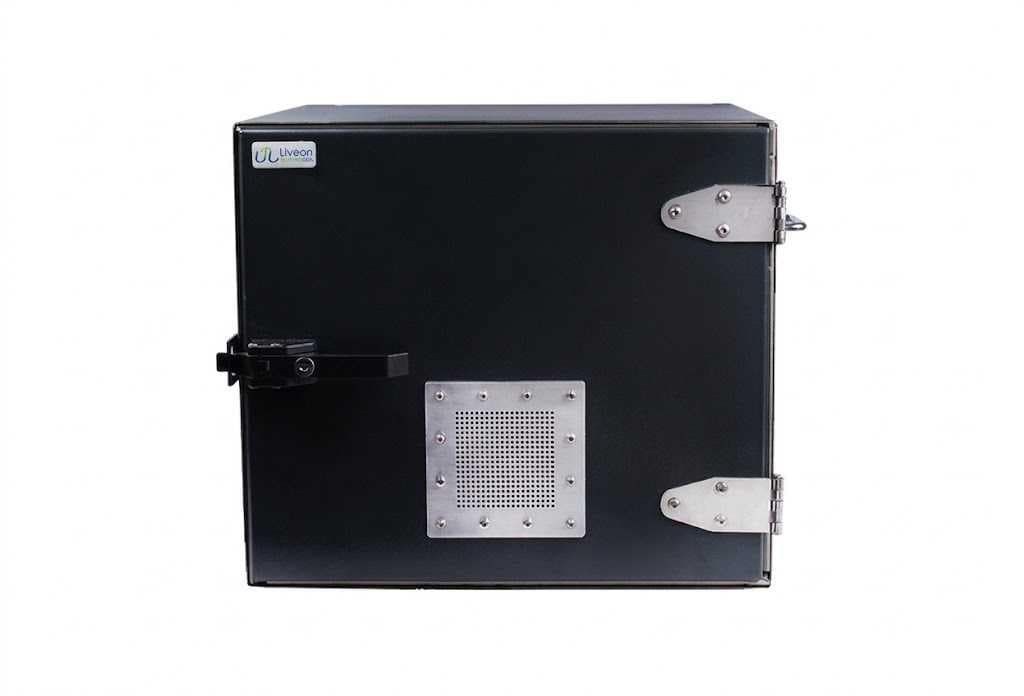

LTL N17001 RF Shielded Enclosure for High-Precision EMI/EMC & Wireless Device Testing
Optimized mid-size RF test enclosure delivering stable isolation and flexible integration for advanced testing environments
The LTL N17001 RF Shielded Enclosure from Liveon Technolabs is a high-performance EMI/EMC test enclosure designed for engineers requiring reliable and repeatable wireless testing conditions. Its optimized internal volume makes it suitable for a wide range of devices, from embedded modules to mid-sized wireless systems.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining

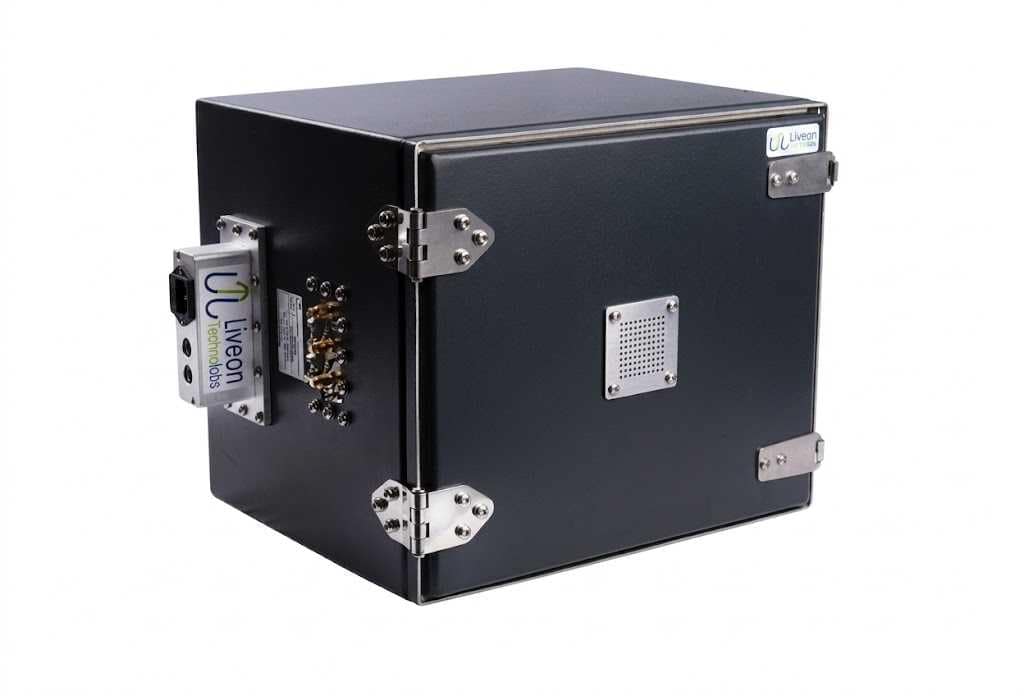

Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 12" H × 12" W × 13.92" D
- Internal : 10" H × 10" W × 11" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- RF absorber lining for reduced internal reflections
- Configurable modular I/O interface system
- EMI-shielded ventilation design
- Suitable for continuous testing operations
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
