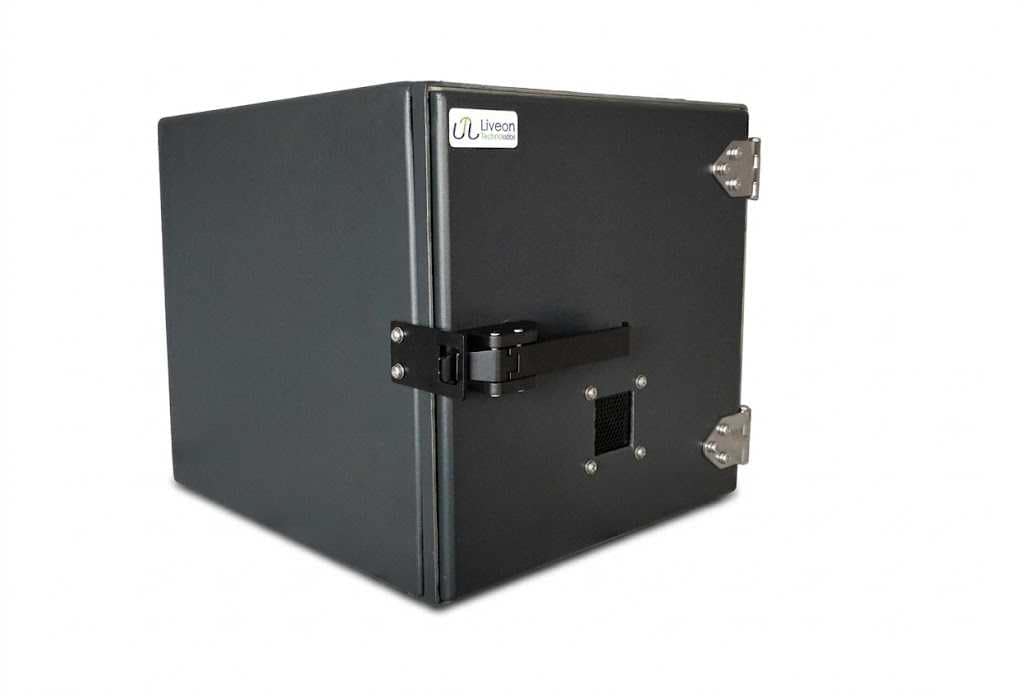

LTL N18001 RF Shielded Enclosure for Advanced EMI/EMC & Wireless System Testing
High-capacity RF test enclosure designed for larger DUTs and stable multi-application wireless validation
The LTL N18001 RF Shielded Enclosure from Liveon Technolabs is engineered for advanced EMI/EMC testing applications that require larger internal space and reliable RF isolation. Designed for engineers working with complex wireless systems, this enclosure provides a controlled environment essential for accurate and repeatable measurements.
This enclosure is ideal for telecom labs, product validation teams, and R&D environments focused on next-generation wireless technologies, including IoT, LTE, and 5G systems.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining

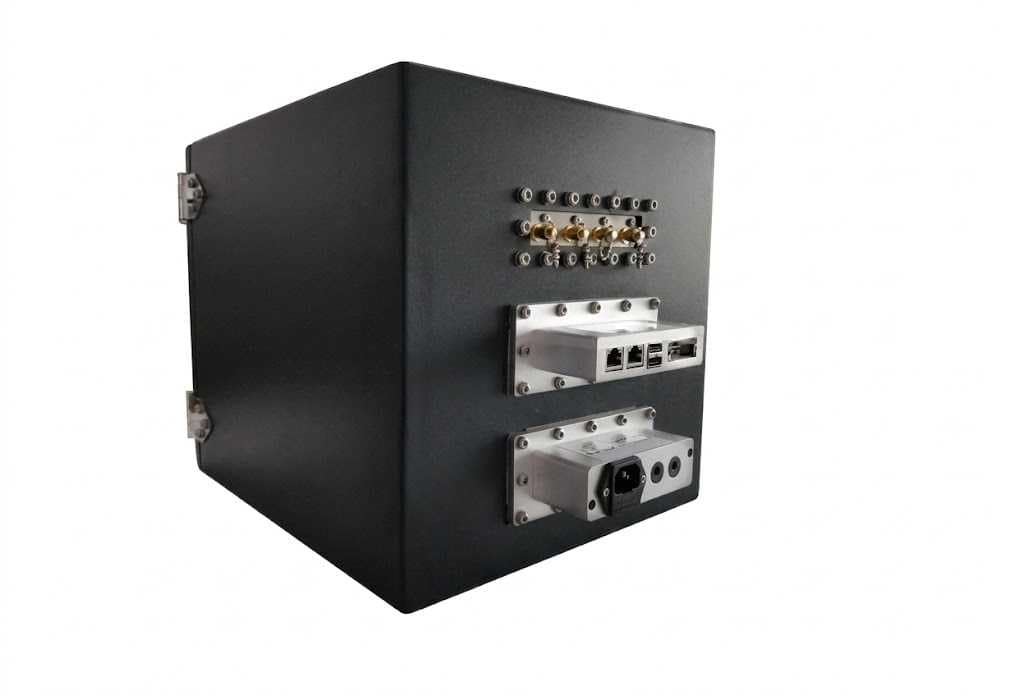

Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 16" H × 12" W × 13" D
- Internal : 14" H × 10" W × 11" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- RF absorber lining for reduced internal reflections

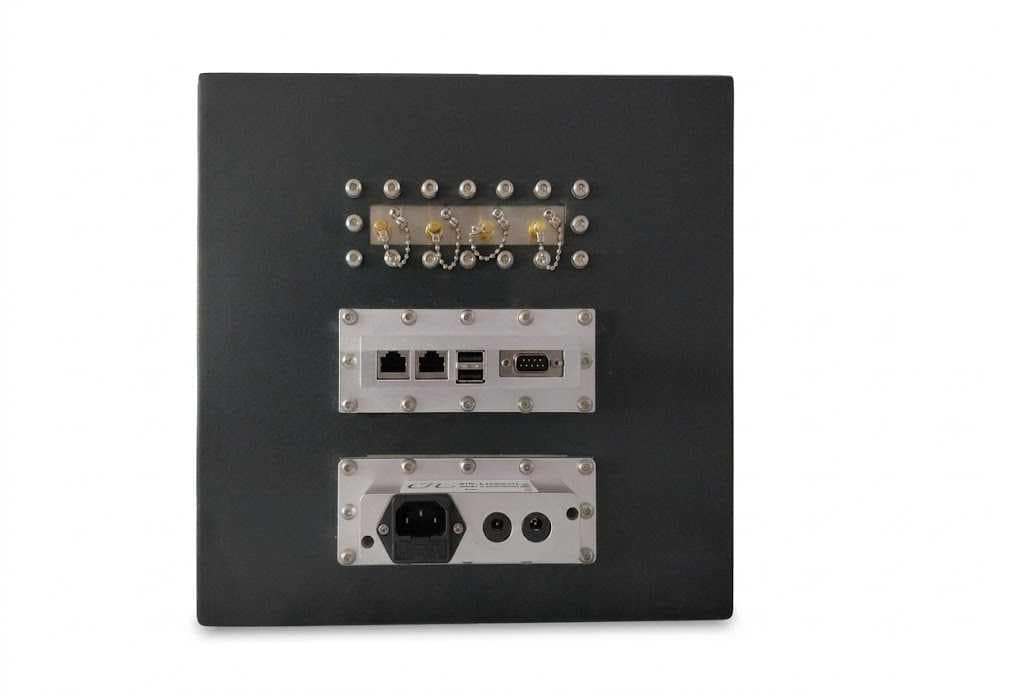

- Configurable modular I/O interface system
- EMI-shielded ventilation design
- Suitable for continuous testing operations
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
