LTL Q22001 RF Shielded Enclosure for Wireless, Bluetooth, Wi-Fi & EMC Testing
Compact RF isolation enclosure engineered for wireless communication validation, Bluetooth testing, Wi-Fi product development, EMC diagnostics, and R&D compliance verification

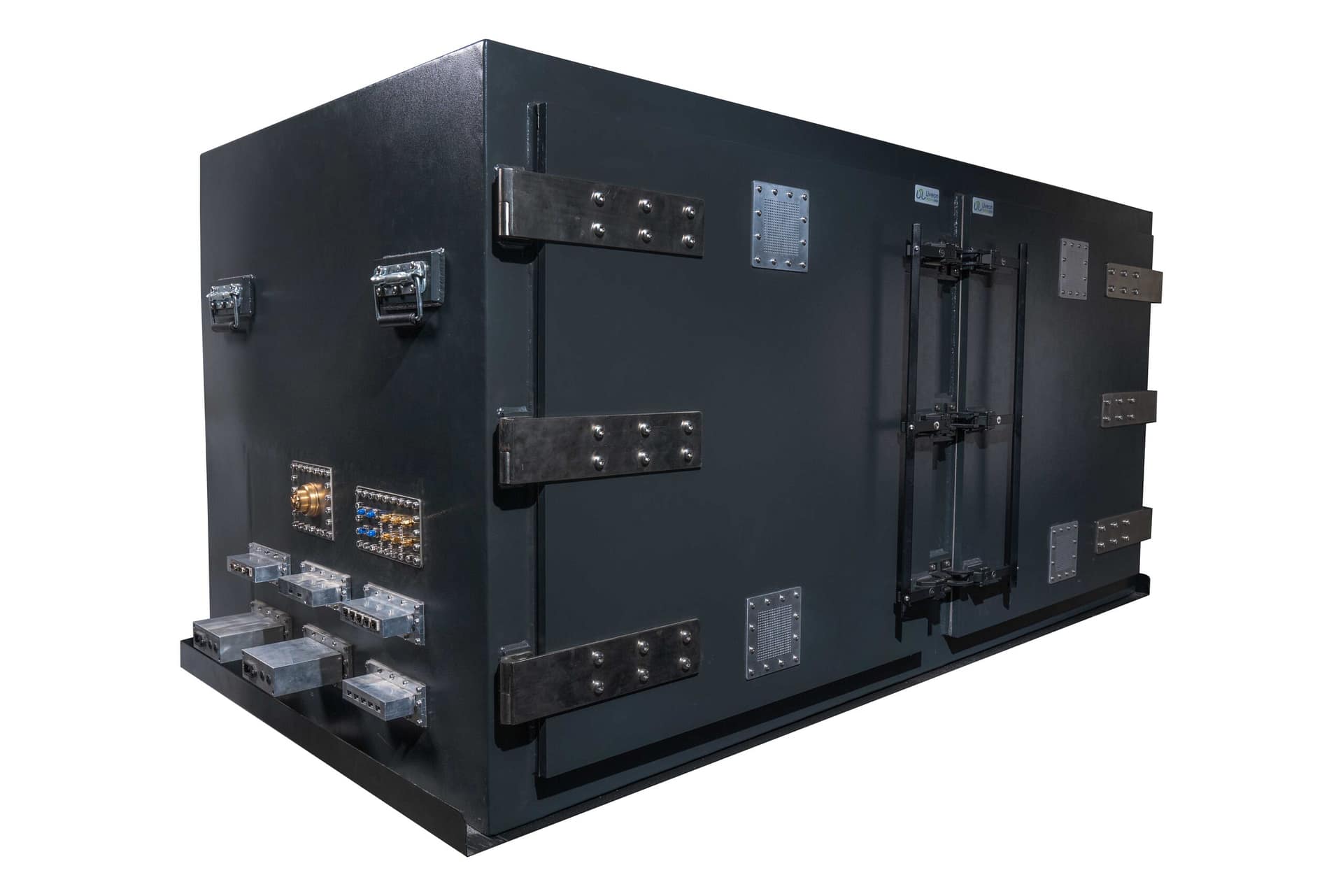

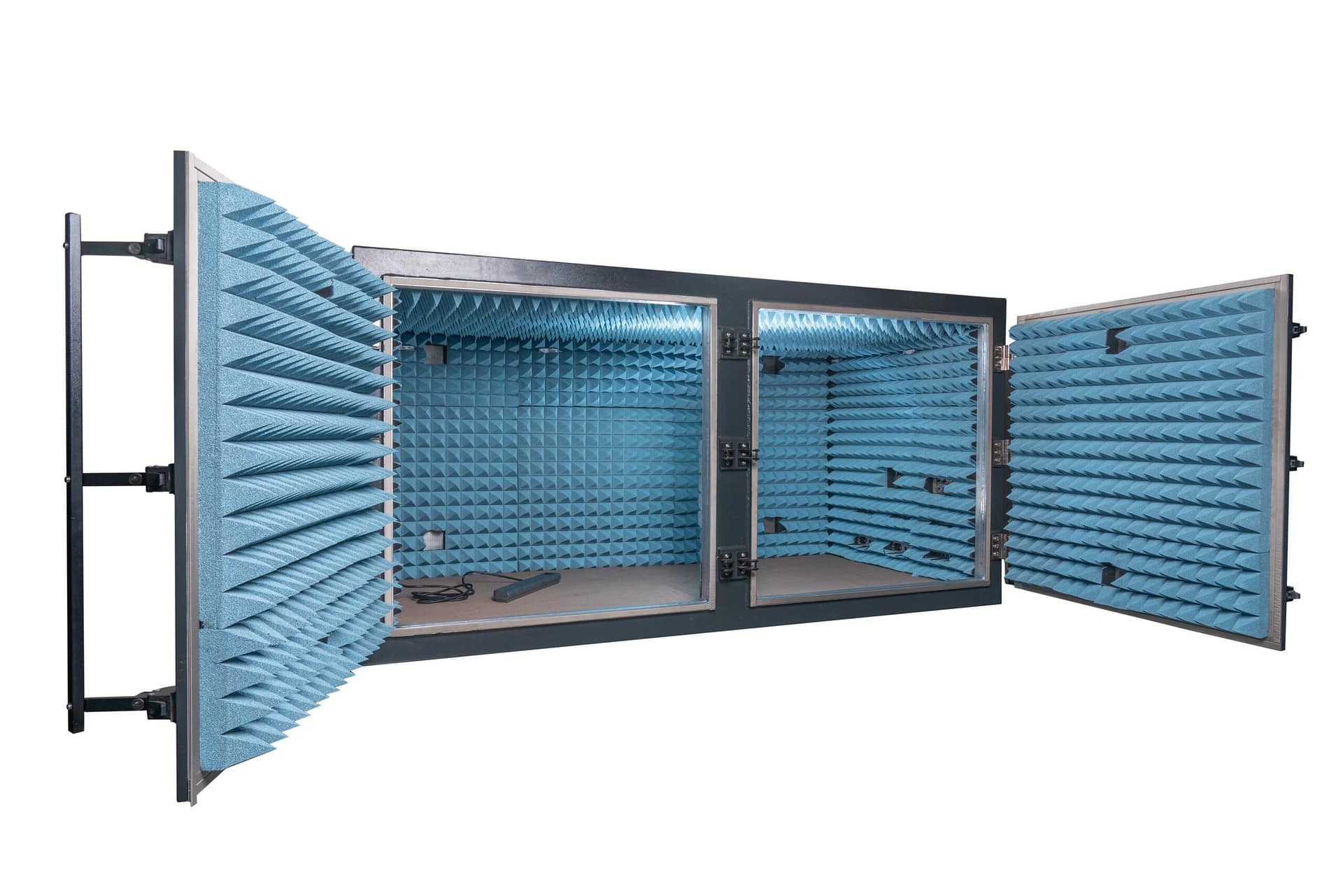

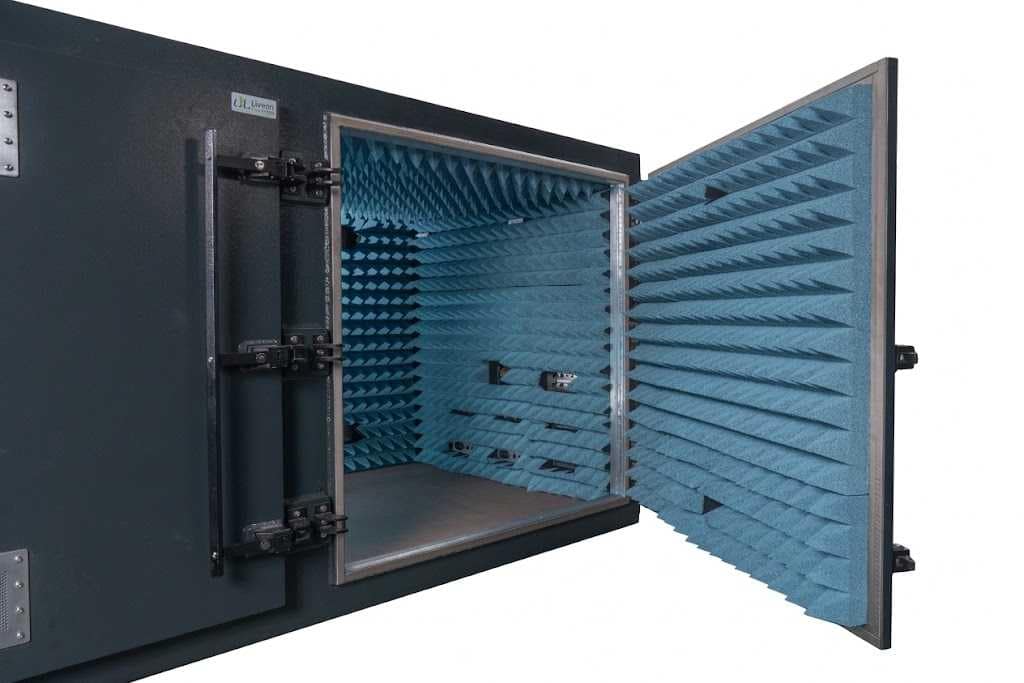

The LTL Q22001 RF Shielded Enclosure is a compact RF isolation chamber developed for wireless device validation, Bluetooth and Wi-Fi testing, EMI/EMC diagnostics, and R&D compliance verification. Designed for engineers, product developers, and testing laboratories, it provides a controlled RF environment for accurate performance measurements while minimizing external electromagnetic interference.
High Shielding Effectiveness
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 95 dB @ 1 GHz
- 90 dB @ 3 GHz
- 80 dB @ 6 GHz
Dimensions & Weights
- External : 30"H × 57"W × 36"D
- Internal : 24"H × 51"W × 28"D
- Frequency Range : 25 MHz to 12 GHz
KEY FEATURES

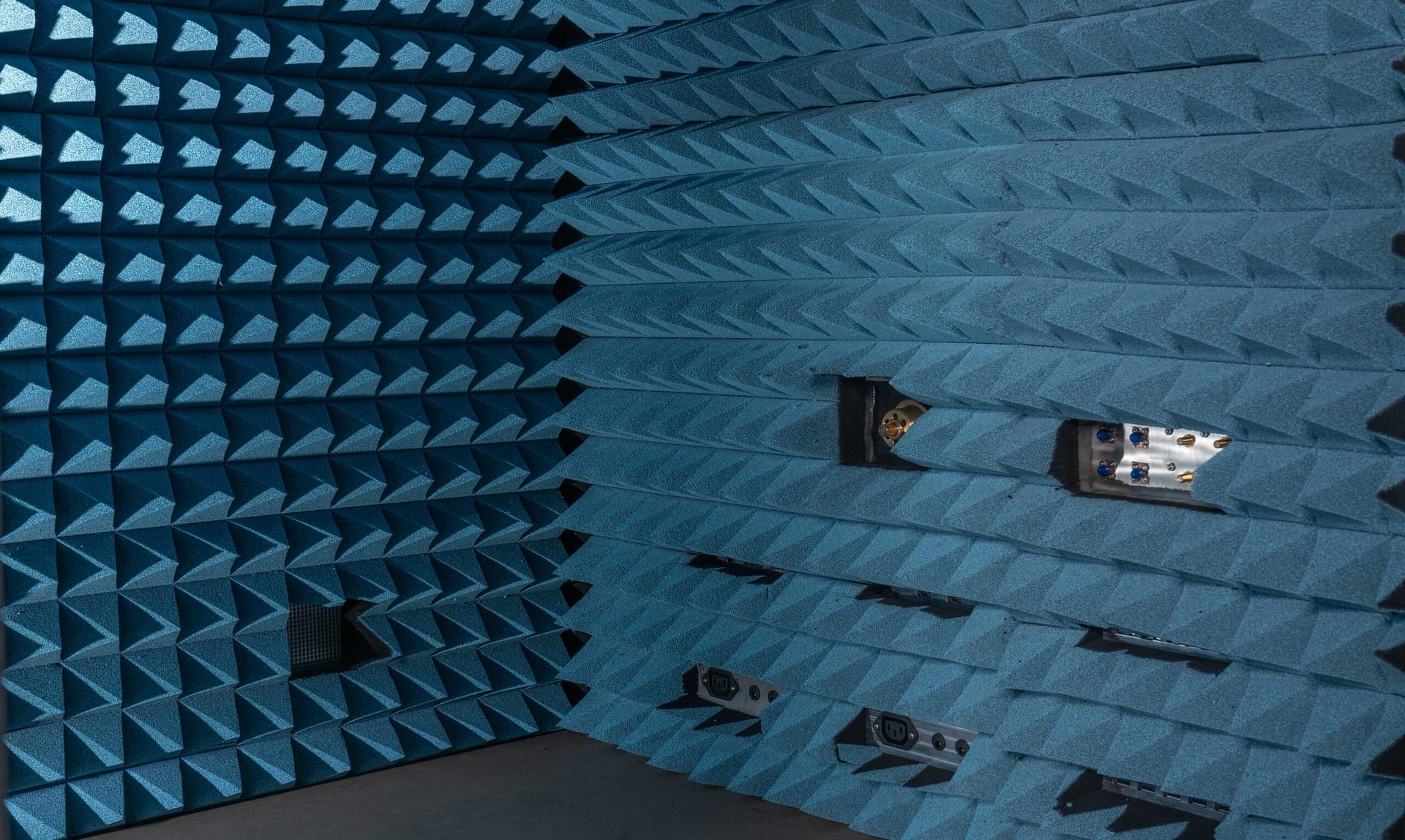

- High-performance RF absorber lining
- User-defined and interchangeable I/O panels
- Stable industrial-grade build quality
- Enhanced RF isolation performance
- EMI-filtered power entry system

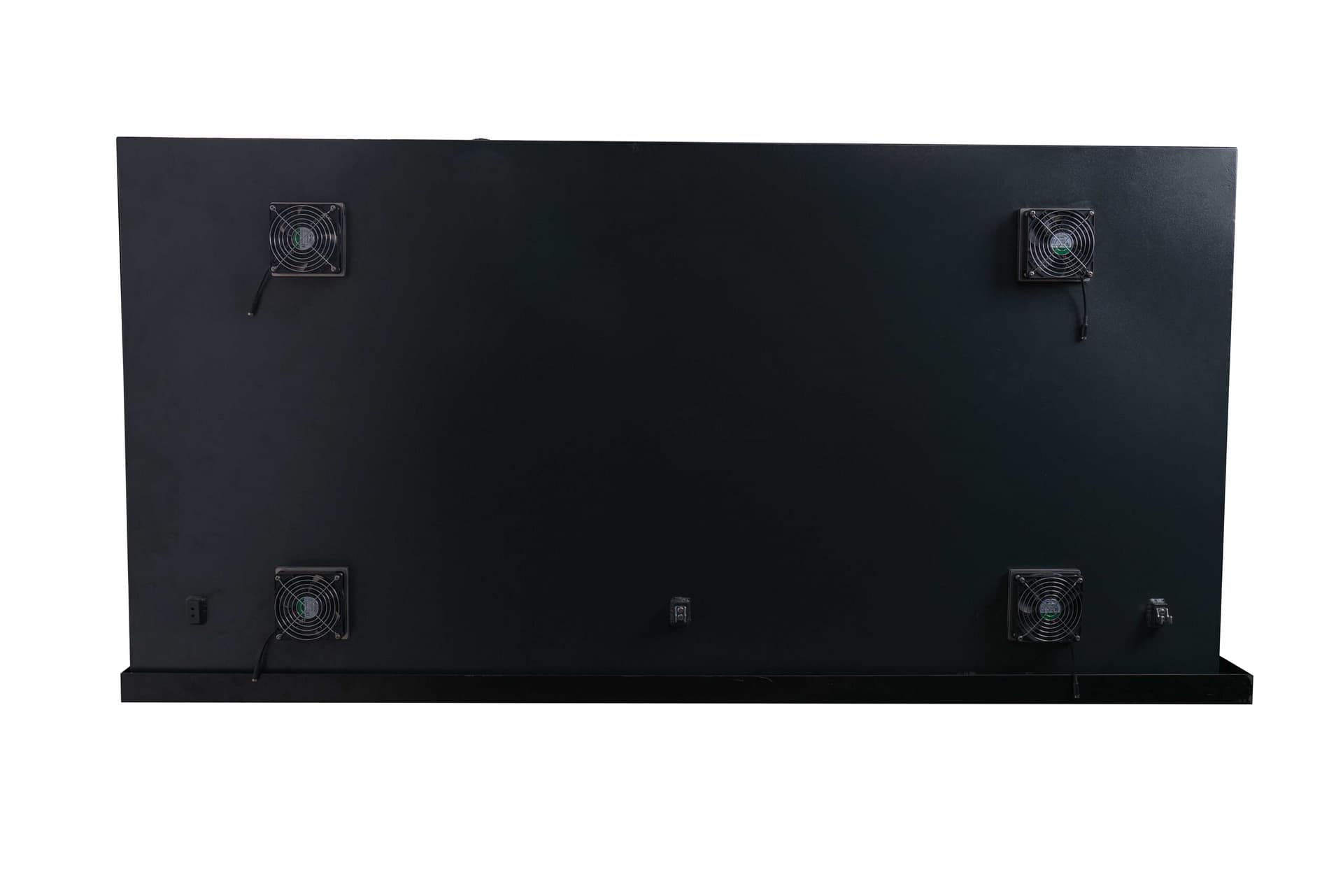

- High performance shielded ventilation
- Durable powder coated finish
- Rack-mountable installation configuration
