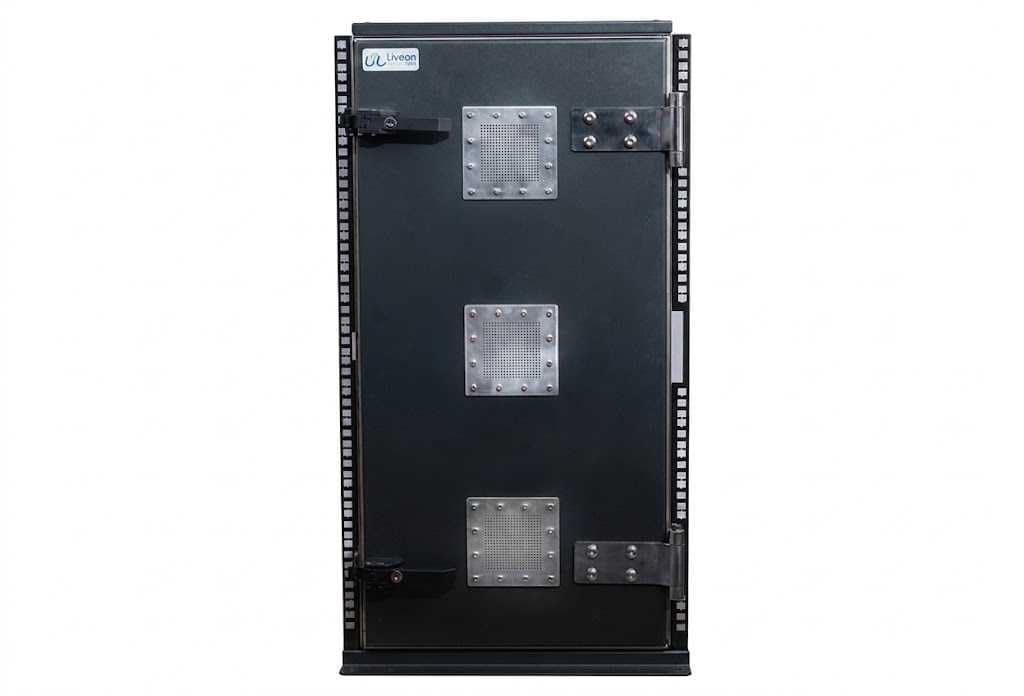

LTL QC4001 Rackmount RF Shielded Enclosure for Multi-Device Wireless Validation
High-density rackmount RF isolation system designed for telecom hardware, network communication systems, automated wireless validation, and multi-device RF testing applications
The LTL QC4001 Rackmount RF Shielded Enclosure is developed for high-density wireless device validation, telecom infrastructure testing, and automated RF isolation environments requiring stable and repeatable shielding performance.
Designed for continuous operational testing, the QC4001 supports scalable RF interface integration, filtered communication ports, shielded ventilation systems, and customized rack-level testing configurations for modern wireless technologies including Wi-Fi, LTE, Bluetooth, IoT, and 5G applications.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 34.5"H × 17.16"W × 23"D
- Internal : 17" H × 24" W × 24" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Ultra-high RF shielding performance
- High shielding effectiveness up to >90 dB RF isolation
- Stainless steel welded enclosure construction

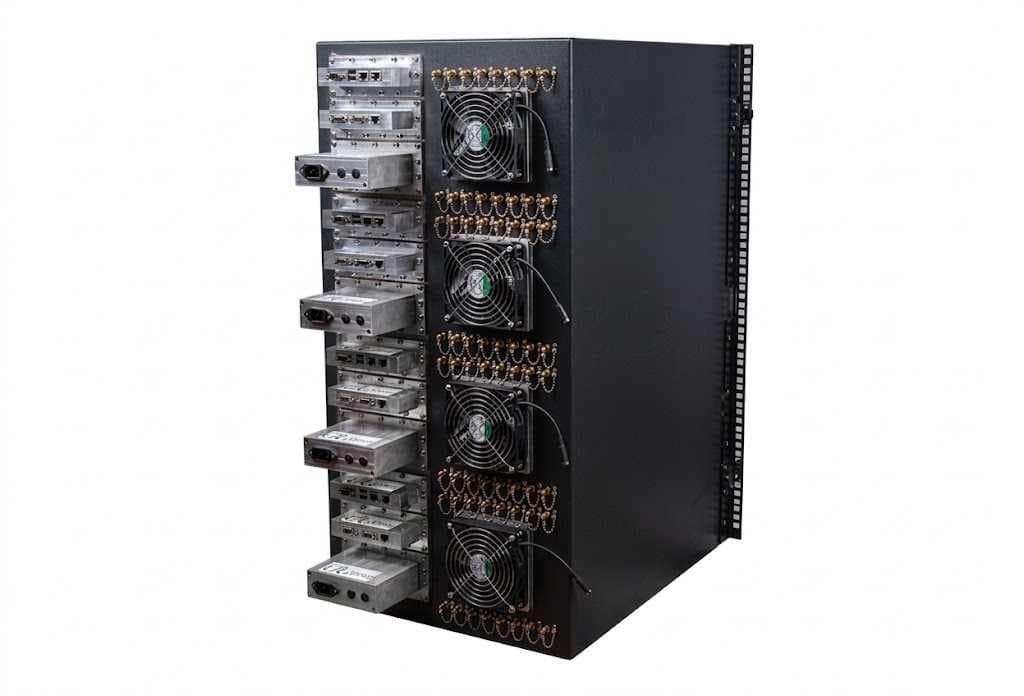

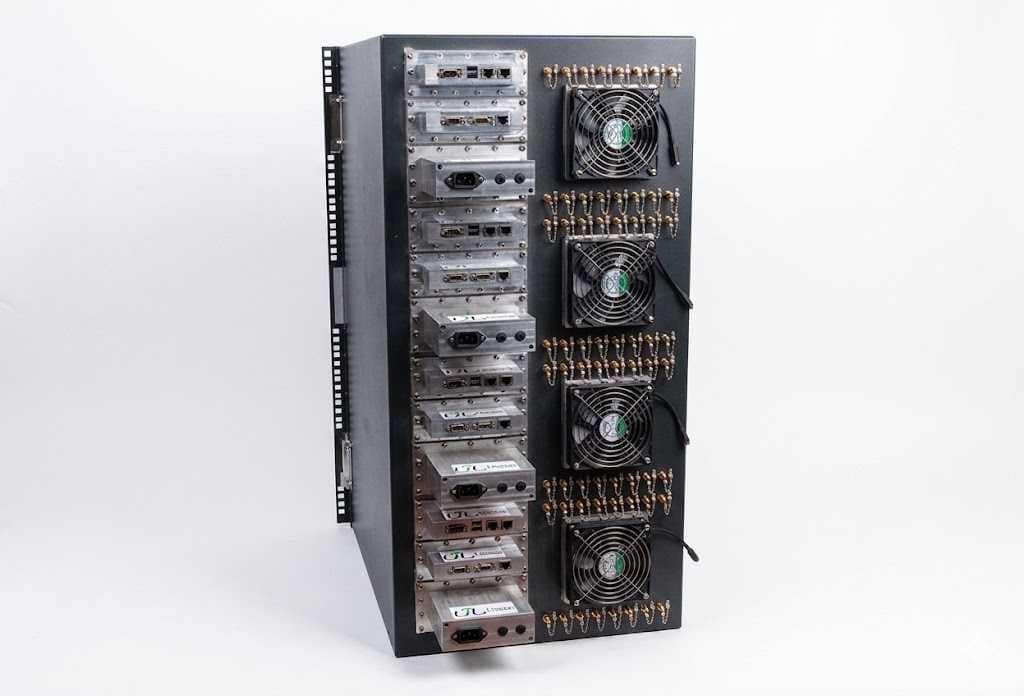

- Customizable I/O interface panel with multiple ports
- EMI-filtered power entry system
- High performance shielded ventilation
- Honeycomb shielded ventilation system
- Customizable connector panel configurations
