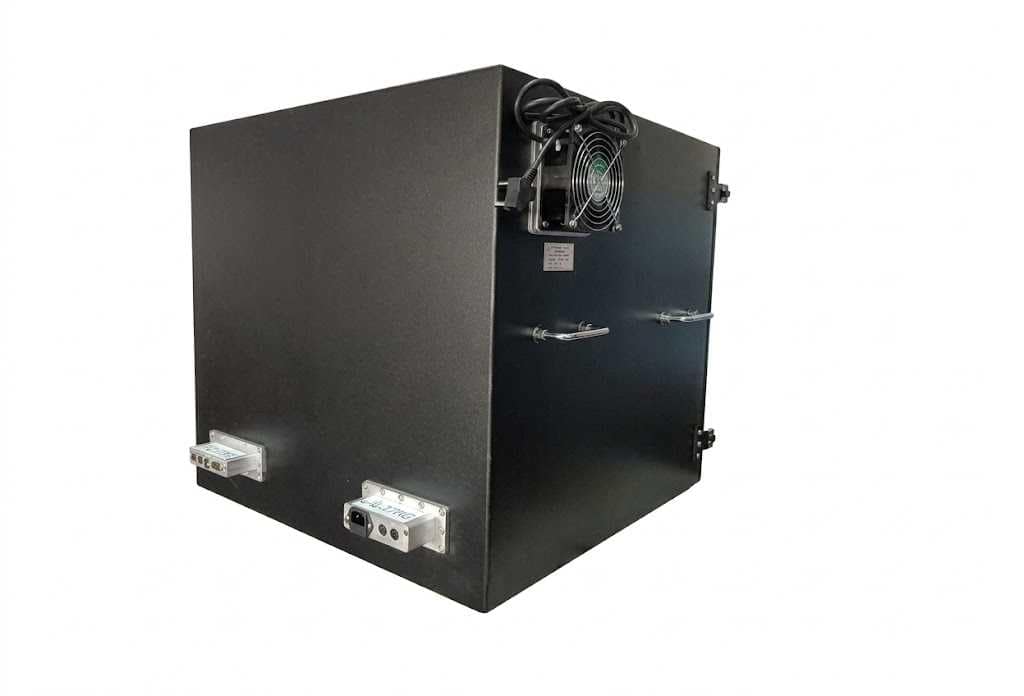

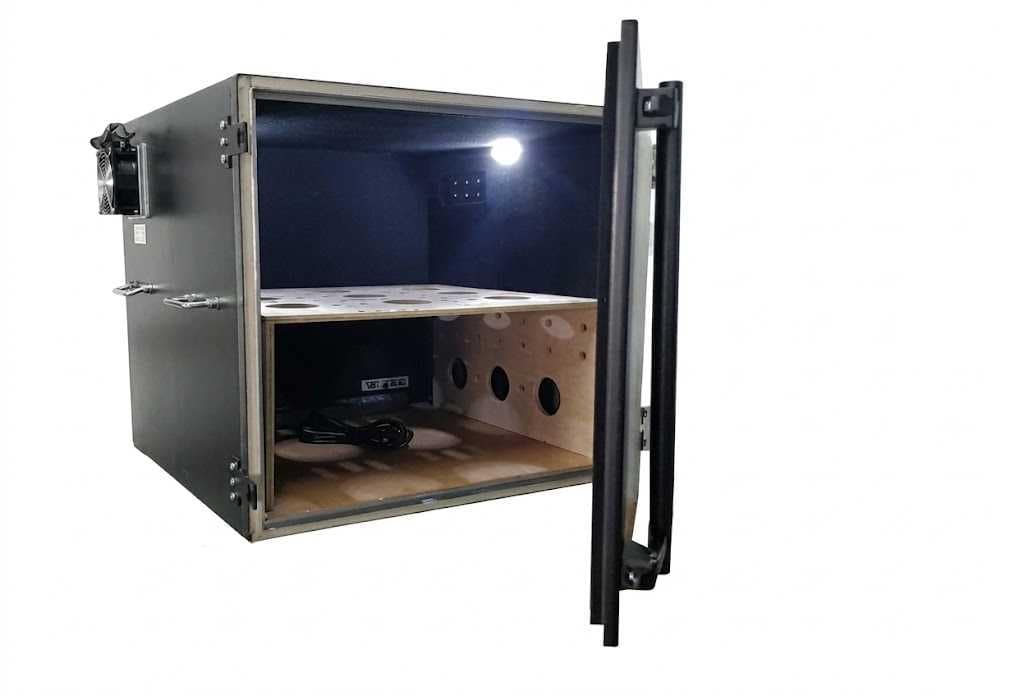

LTL U30001 RF Shielded Enclosure for OTA Testing & Wireless Device Validation
Advanced RF isolation enclosure designed for OTA testing, wireless product development, IoT validation, telecom device analysis, and secure RF performance evaluation
The LTL U30001 RF Shielded Enclosure is engineered for advanced wireless testing applications requiring stable RF isolation and controlled signal environments. Designed specifically for OTA (Over-the-Air) testing, IoT validation, telecom product development, and embedded wireless device analysis, the enclosure enables accurate RF performance evaluation without external signal interference.
The U30001 is highly suitable for wireless R&D labs, telecom infrastructure testing, antenna validation, smart device certification, embedded communication testing, and advanced RF engineering environments.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 25"H × 25"W × 25"D
- Internal : 23"H × 23"W × 123"D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- User-configurable I/O interface panels
- OTA wireless device testing support
- EMI-tight RF gasket sealing system
- Customizable I/O interface panel with multiple ports
- EMI-filtered power entry system
- High performance shielded ventilation
- Honeycomb shielded ventilation system
- RF absorber integration compatibility
