LTL Q30001 Rack Mounted RF Shielded Enclosure for Wireless, EMC & Aerospace Testing
High-capacity RF isolation enclosure engineered for wireless communication testing, EMI/EMC validation, aerospace electronics evaluation, antenna measurements, and R&D compliance testing.
The LTL Q30001 RF Shielded Enclosure is a rack-mounted RF isolation cabinet designed for wireless device validation, EMC testing, aerospace electronics verification, and antenna performance evaluation. Its large internal workspace allows engineers and researchers to conduct reliable RF measurements while minimizing external electromagnetic interference.
High Shielding Effectiveness
EMI Filtered Power & Data Interfaces

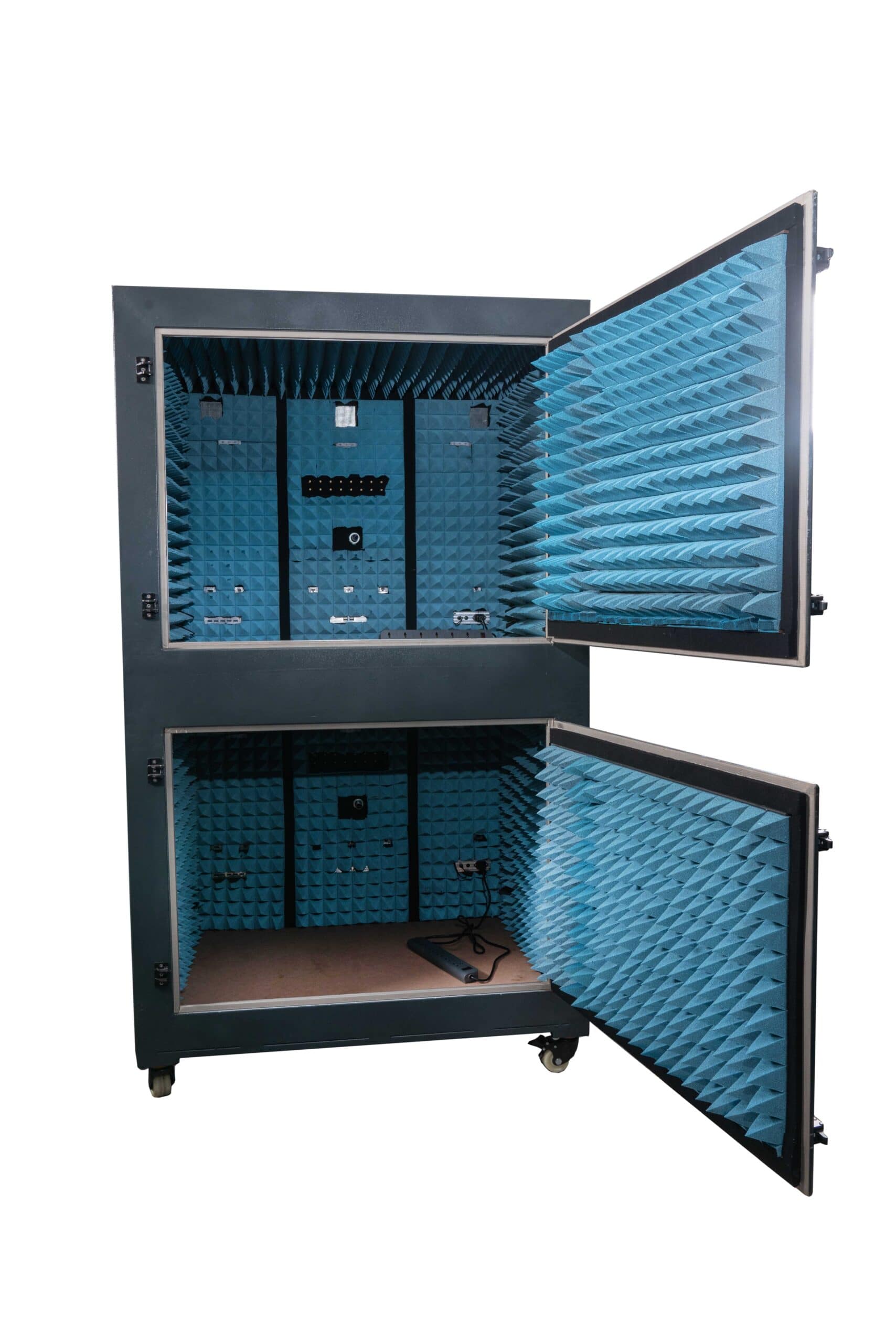

High Performance RF Absorber Lining

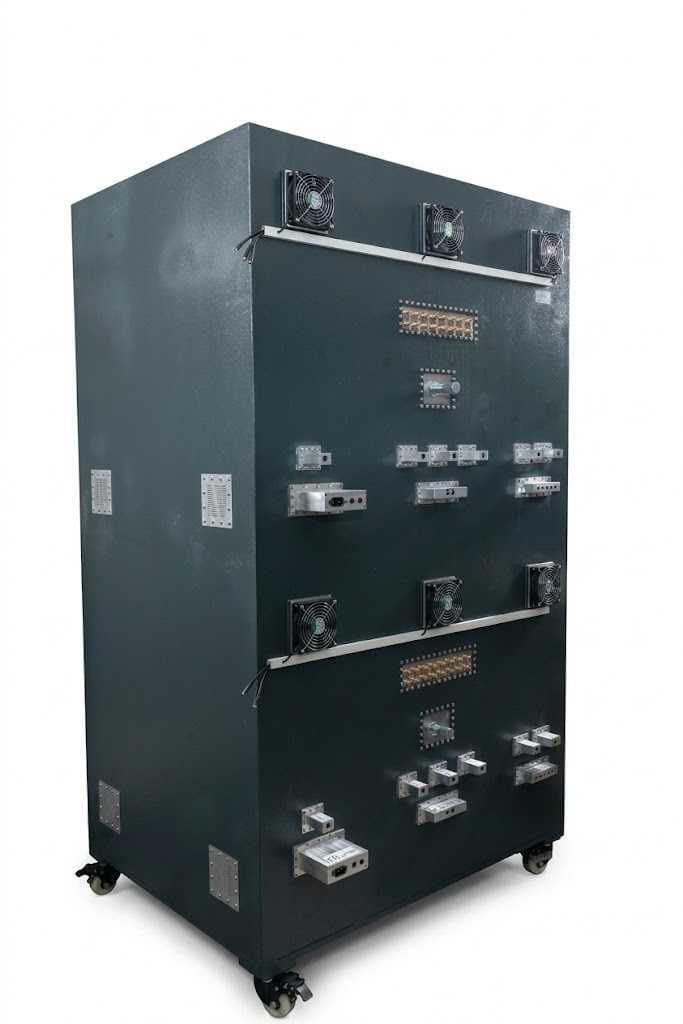

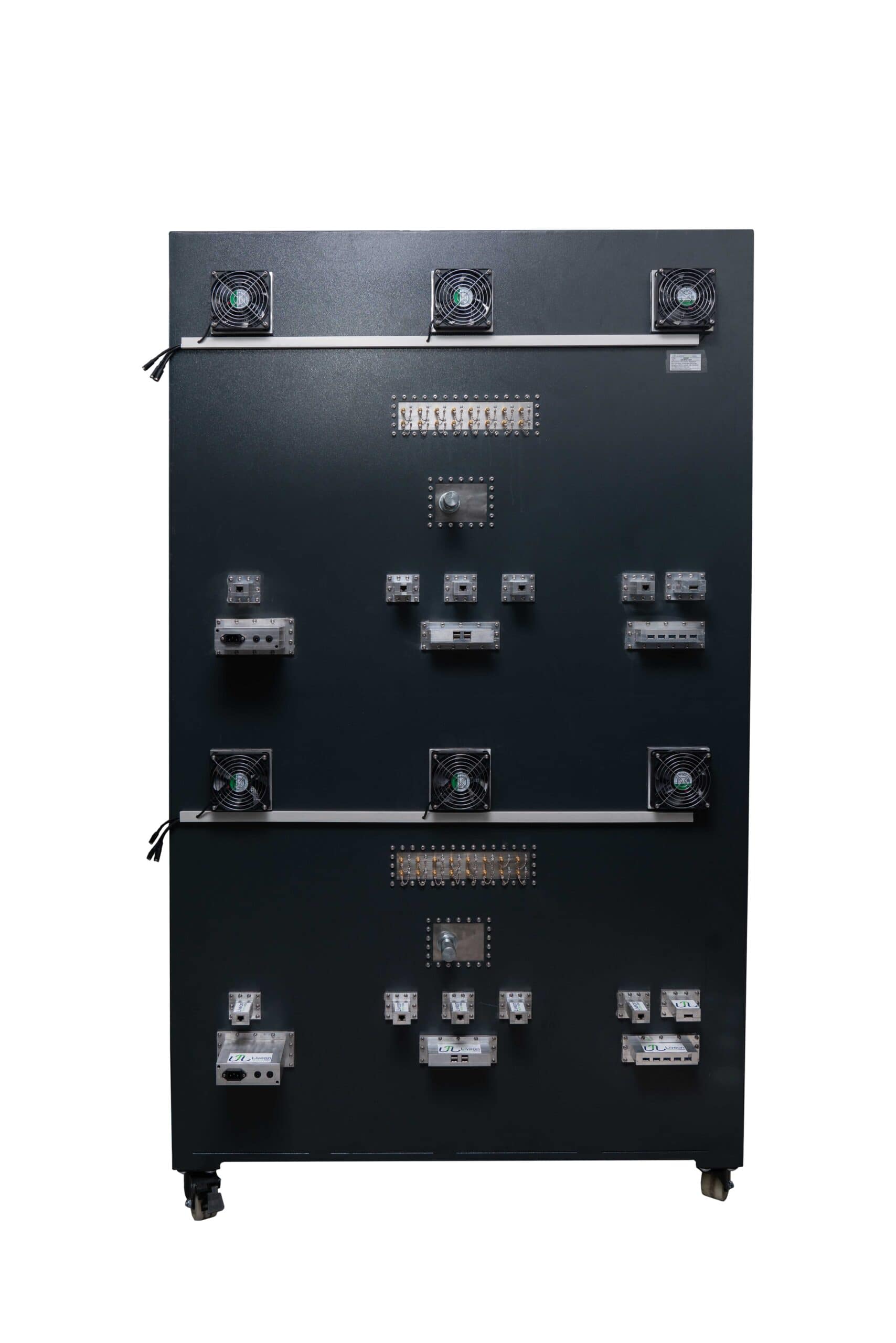

Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 95 dB @ 1 GHz
- 90 dB @ 3 GHz
- 80 dB @ 6 GHz
Dimensions & Weights
- External : 84"H × 48"W × 36"D
- Internal : 76"H × 40"W × 28"D
- Frequency Range : 25 MHz to 12 GHz
KEY FEATURES
- High-performance RF absorber lining
- User-defined and interchangeable I/O panels
- Stable industrial-grade build quality
- Enhanced RF isolation performance
- EMI-filtered power entry system
- High performance shielded ventilation
- Durable powder coated finish
- Rack-mountable installation configuration
