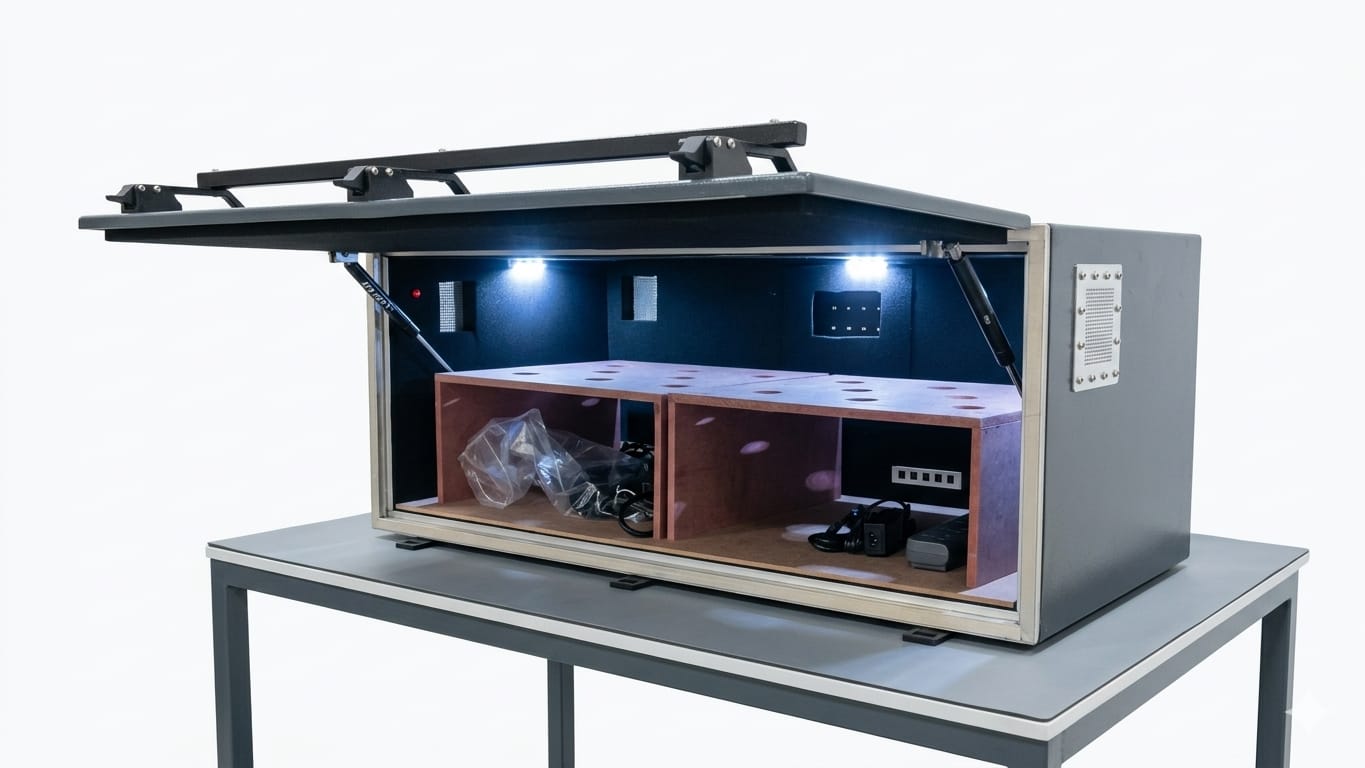

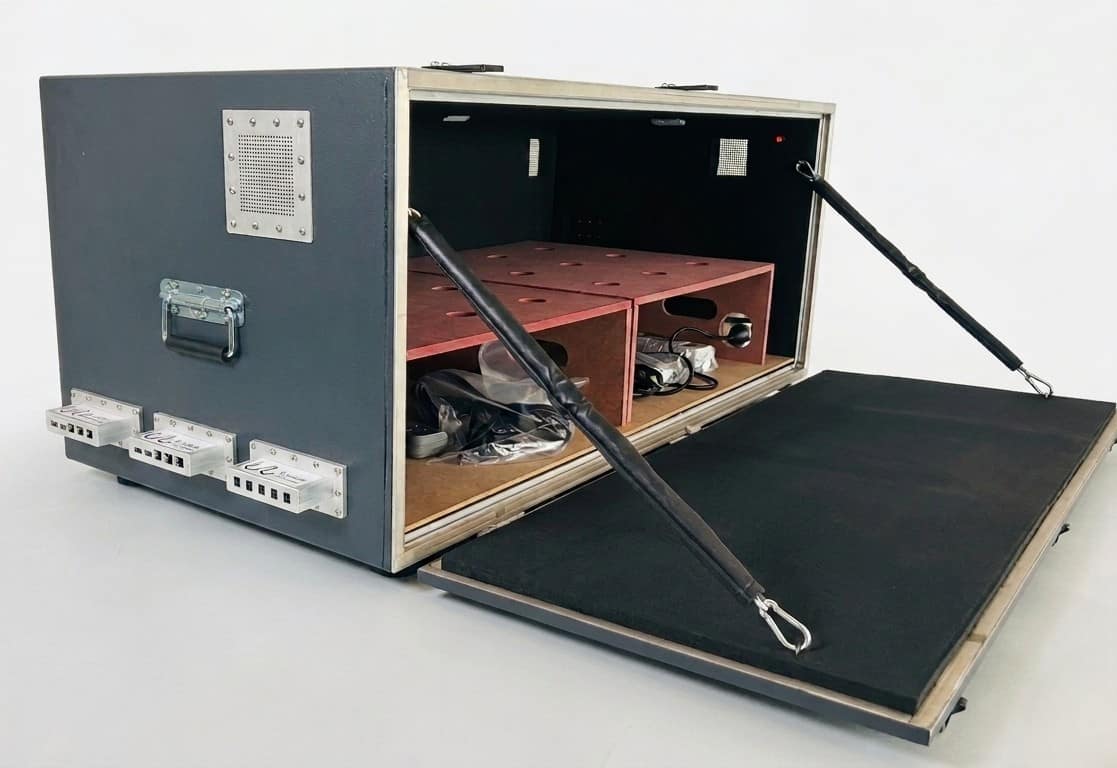

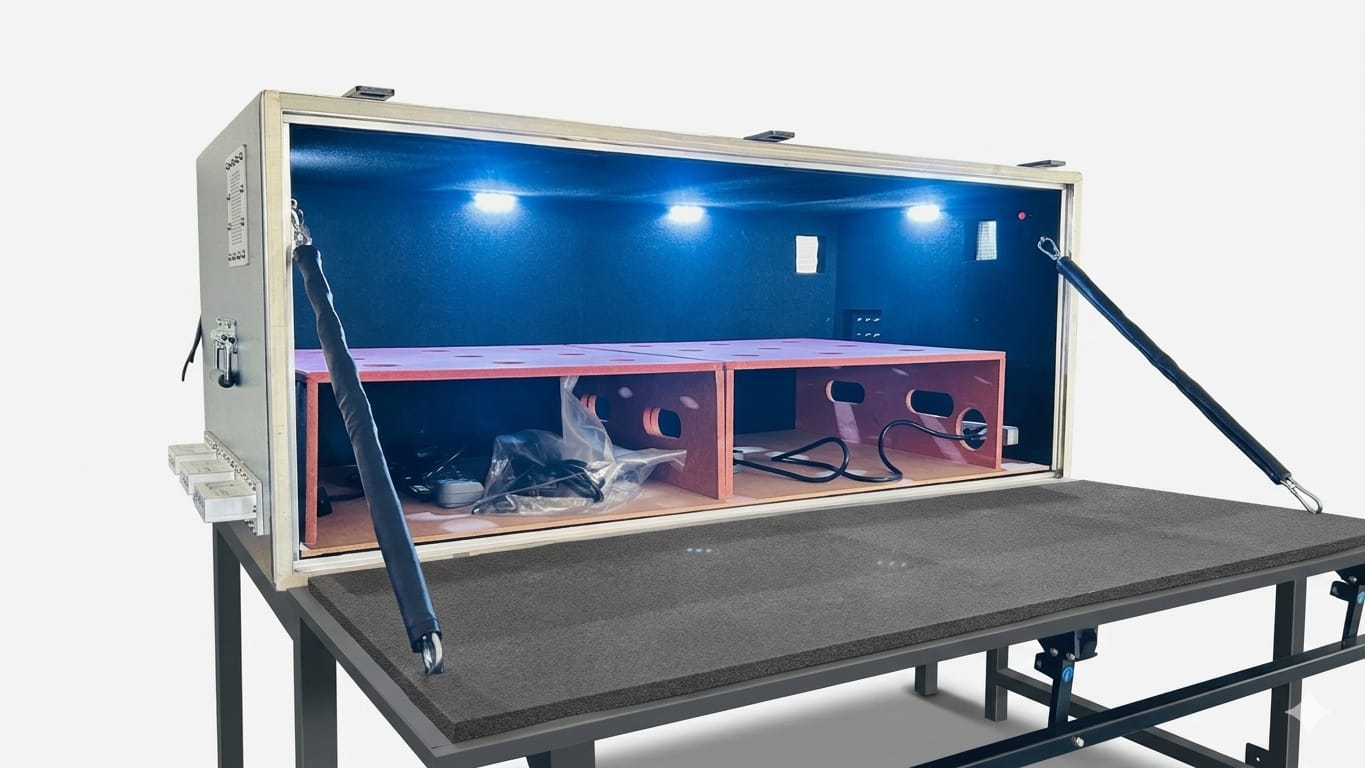

V24001 RF Shielded Box
High-Performance Shielded Enclosure for EMI/EMC
Testing & Wireless Device Validation
The V24001 RF Shielded Box is engineered to provide high shielding effectiveness and reliable performance for testing of wireless devices, loT products and RF modules. With filtered I/O interfaces, RF absorber lining and rugged construction, it ensures an ildeal test environment by eliminating unwanted interference.
Excellent Shielding Effectiveness
EMI Filtered Data & Power Lines
High Performance RF Absorber Lining
Customize I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 85 dB @ 20 MHz - 1 GHz
- 90 dB @ 1 GHz - 3 GHz
- 85 dB @ 3 GHz - 6 GHz
- 80 dB @ 6 GHz - 12 GHz
Dimensions & Weights
- External : 600 mm x 500 mm x 500 mm
- Internal : 560 mm x 460 mm x 460 mm
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- RF tight door with conductive gasket
- EMI fittered AC / DC power lines
- Shielded Ethernet, USB & RF connectors
- Internal RF absorber for minimum reflections
- Modular I/O panel for custom requirements
- High performance shielded ventilation
- Durable powder coated finish
- Easy access for DUT placement & operation
