RF Shielded Test Box for WiFi, Bluetooth & EMI/EMC Testing – B2001
High-isolation RF Shielded Box engineered for accurate EMI/EMC and wireless device testing

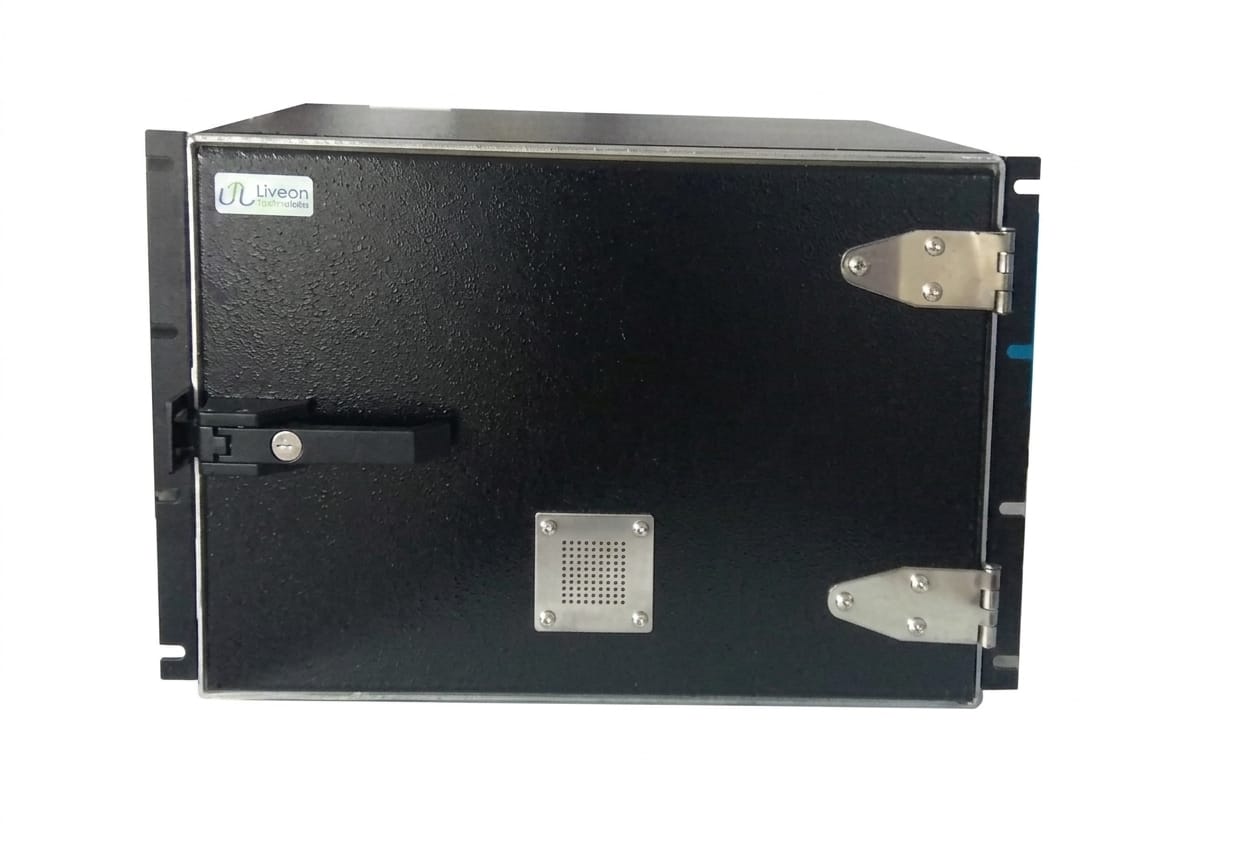

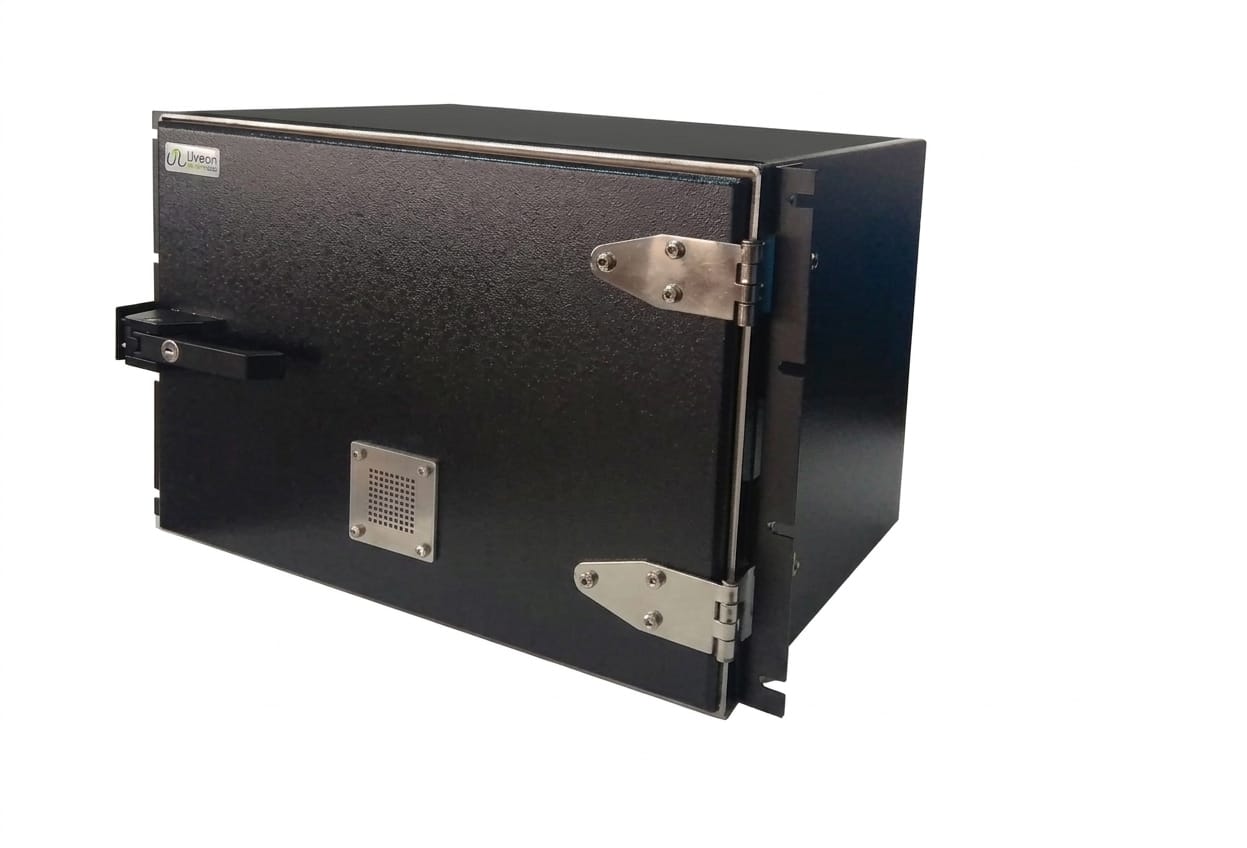

The LTL B2001 RF Shielded Box is a precision-engineered RF Test Box designed for reliable EMI/EMC testing, WiFi, Bluetooth, and IoT device validation. Built for high shielding effectiveness, this EMI EMC enclosure ensures minimal signal leakage and accurate test results in controlled environments. Its compact structure and customizable interface options make it ideal for R&D labs, wireless testing setups, and industrial applications.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining

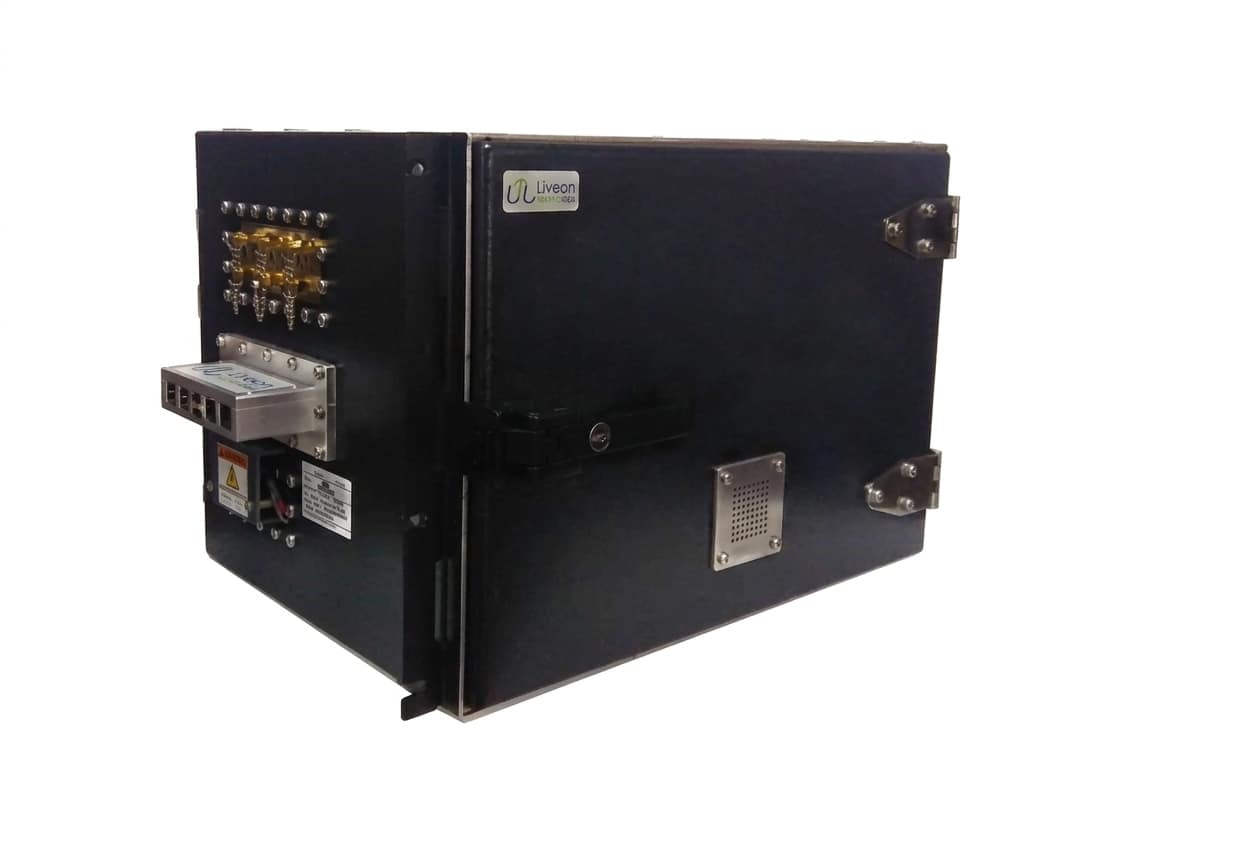

Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 11.5"H x 17"W x 22"D
- Internal : 9.5" H x 15"W x 20"D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- High-performance RF shielding with minimal leakage
- Precision gasket sealing for consistent isolation
- Easy access hinged door with secure locking
- Suitable for continuous testing operations
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
